Chevrolet

1986

Chevrolet

M 1008 C 30 Only 46 K miles

Green / Green Military Diesel 4 x 4 Pickup w/ Plow C 30 M 1008 D 30

VIN: 1 GCGD 34 J 5 GF 413708

2 Doors.

4 X 4.

Comm Pickup/Van.

8 Cylinders

. Automatic Transmission

City MPG

Hwy MPG

17. 0

19. 0

Actual mpg may vary

Vehicle Description

1 ton. Excellent condition rare military pre humvee. ew gas tank & more. low w/cab control hand held remote. 3 K in new Tires/Wheels & originals as well.

Call M 1008 Truck. Cargo. Tactical. 1 1/4 Ton. 4 x 4 Chevrolet CUCV

The M 1008 cargo truck (pick-up body) is the base model of the M 10 xx Chevy Commercial Utility Cargo Vehicles (CUCV)

series of trucks. The linked page provides more information on the general characteristics of the Chevrolet CUCV trucks. varaints and kits. and a directory of links to Olive-Drab. com pages for other models of the series.

The M 1008 (NSN 2320-01-123-6827) and M 1008 A 1 (NSN 2320-01-123-2671) are light commercial trucks. with military modifications. designed to provide standard tactical mobility and to carry cargo or passengers. The M 1008 and M 1008 A 1 can be equipped with troop seats to accommodate up to eight personnel in the pickup bed. The M 1008 A 1 includes a 100 amp/24 volt communications kit. A folding cargo cover and bows are also available as a kit to cover the cargo box.

The M 1008 A 1 is sometimes referred to as the " CUCV II ".

The M 1008 evolved to the M 1028 CUCV series of trucks . visually almost identical but with heavier suspension and other components to carry communications/electronics shelters and equipment.

Chevy Military Pickup Truck. 1 1/4 ton. 4 x 4 M-1008

The M-1008 is a Commercial Utility Cargo Vehicle (CUCV pronounced "cuck-vee"). a military modified Chevrolet commercial pick-up truck. based on the General Motors Model K 30 903 pickup. CUCVs were commissioned by the U. S. military to use COTS (commercial. off-the-shelf) vehicles with minor modification in non-combat roles.

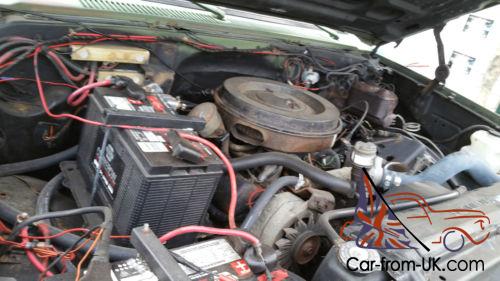

Engine: GM (Detroit Diesel) 379 cu in. (6. 2 L) J-series non-emissions diesel V-8 engine.

Transmission: GM TH 400 (Turbo Hydramatic 400) automatic transmission with 3 forward and 1 reverse speeds.

Transfer Case : Manual NP 208

Axles:

Front: Dana 60. Lockout hubs on front axle.

Rear: 10. 5 in Corporate 14 Bolt rear diff (w/Detroit Locker).

4. 56:1 ratio.

GVWR Weight: 8800 lbs (4000 kg)

Curb Weight (Total) : 5900 lbs (2679 kg) distributed 55% front/45% rear Payload: 2900 lbs (1317 kg) Towed Load Allowance: 3000 lbs (1361 kg) GVW : 8800 lbs (3995 kg) Wheelbase 131. 5 in (334 cm) Length 220. 7 in (560. 6 cm) Width 81. 2 in (206. 2 cm) Height 75. 4 in (191. 5 cm) Electrical: 12/24 volt dual voltage. 100 amp electrical system Brakes: Hydraulically activated. power-assisted front disc and rear drum service brakes. silicone fluid Fording: 20 in (50. 8 cm) w/o kit Ground Clearance: 7. 8 in (19. 8 cm). rear axle GVW w/included "2 nd set" stock tires. (actual clearance higher since new $3 K all terrain large tires installed & included)
