1963 Pontiac Le Mans

Pontiac

Little Indian

Magazine Cover Featured Car

One year only body style

1963 Lemans

Not another

Camaro, Nova or Chevelle

Pro touring

Restomod

Autocross

LS engine

Richmond

Super T 10 Trans

Ford 9 in

Over 1800 hours into build

This is a full tube chassis build. Frame is 2 x 3 tubing , built on a frame table. Full

8 point roll cage . Built to road racing specs.

Scotts Hod rod front end with Viking adjustable shocks front and rear, Quick ratio Rack,

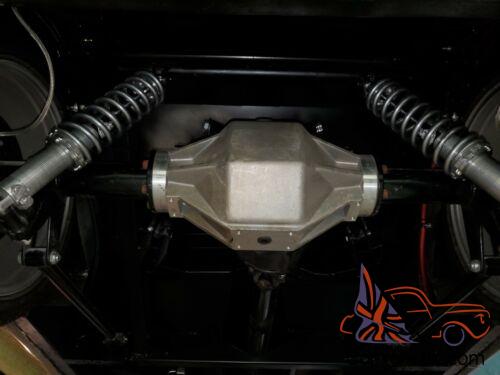

Rear end is A Aluminum Ford 9 in with a

strange center section and a true track Diff with 3.90

gears.

4 piston rear Wlwood brakes.

Front brakes are 6 piston Wilwood.

Rear brakes are 4 piston.

Rear end is held in with a Tri-bar setup.

There is a sway bar front and rear.

Trans is a built Richmond

Super T 10 with a Quicktime scatter shield , Has a Hays Dragon Claw Billet

dual disk clutch with a Hays slave cylinder.

light weight flywheel.

Hurst Comp plus shifter.

Motor is a LS 3 top engine with a Gen 4 6.0 lower end.

500 HP at crank,

Set up for having a turbo if needed.

Just need to change Cam.

Texas Speed Cam .

motor made 438 rwhp.

Long tube

Stainless headers with Flow Master muffles.

Interior has Kirkey seat with 5 point racing belts..

Android Tablet for a screen that control

radio, gauges, internet, navigation, Google maps and much more.

All headlights

high and low work.

Car has blinkers and four way flashers, horn, dome light.

All switches are hidden on top bar of roll cage.

Very clean dash only has a key switch that can be seen.

Body was very solid when started.. only patches were on lower rear wheels being tires.

Car was completely stripped and body work started. Body was epoxy primed.

Car is very straight and clean.

Front end, hood ,rear bumper are fiberglass made by VFN . Then painted with a 2018 VW color.

front and rear bumpers are wrapped in chrome. Led lights all around.

All new interior, door panels , carpet, headliner.

16 gallon Fuel cell, Walbro Fuel pump in cell.

Yellow Optima battery. , Wheels are Forged Rocket Racing Attack Wheels 18 x 12 rear and 18 x 10 front.

Tires are BFGoodrich

Rivels 315 rear and 285 front. New heavy duty Driveshaft.

Safety loops on Driveshaft

There is a Wilwood front master and rear master adjustable under the dash also a Wilwood master for the clutch also. Motor is setback 10 in for weight

Car is fun to drive handles like a Corvette.

Gets a lot of attention

were ever it goes.

And could be driven or used for autocross or road raced.

Car was just finished this spring.

Car is in videos from LS fest

east were it was in the Grand Champion class.

Was is Good Guys magazine from Des Moines Good Guys.

Going to be Featured in the winter

Issue of CHEVY HUB Magazine.

Is on the cover

with over 20 pages in a high end magazine

All magazines will be passed on and also all 500 plus build photos. This is a true one of a kind Build.

Time to move to my next project..

Here is some videos of the Lemans

Have any questions about Lemans Ask .. Questions asked about how It was done will not be answered.
