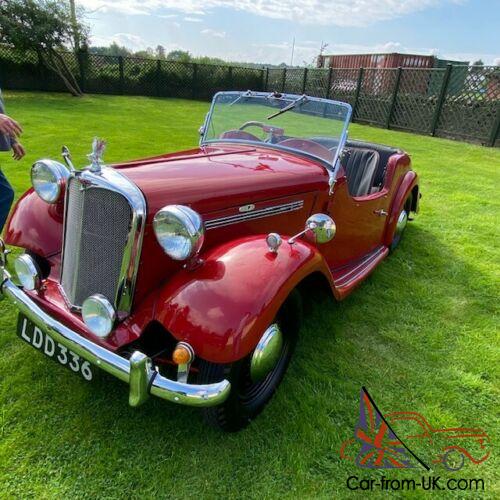

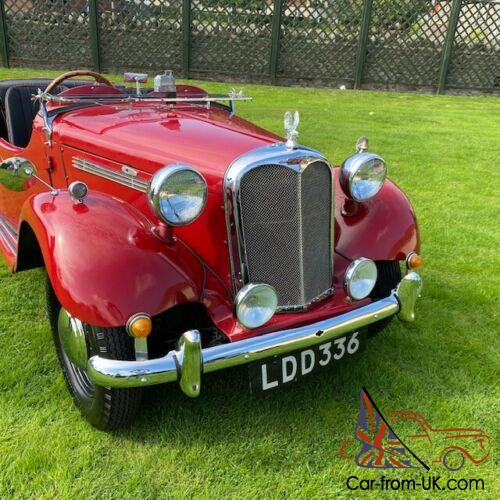

1951 Singer 4AB Roadster 4 Seater Complete Restoration to Concourse Condition

1951 Singer 4 AB 4 Seater Roadster 1074 cc engine 2 previous owners from new with history file dating back 35 years 51,500 Miles prior to restoration believed genuine Chassis up restoration to concourse standard Restoration over 4 year period to exacting standards.

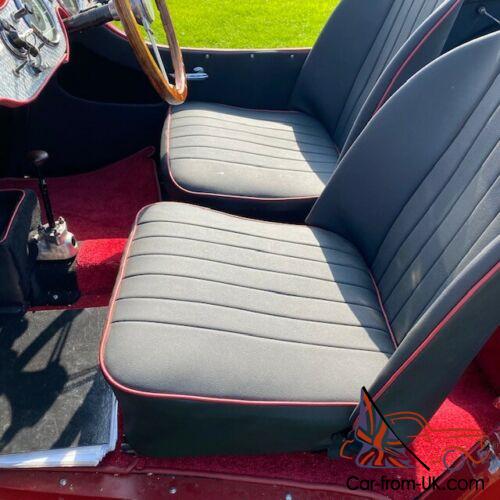

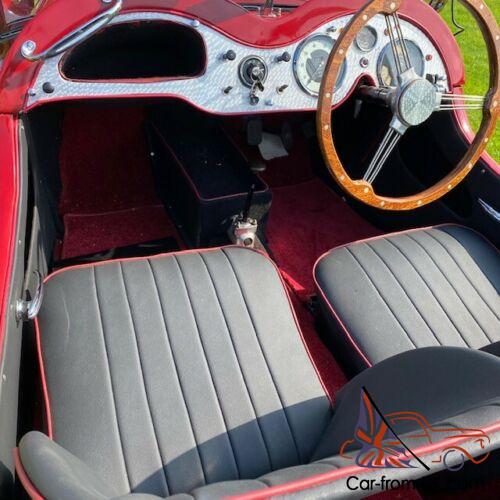

Finished in Red with black interior, hood & tonneau.

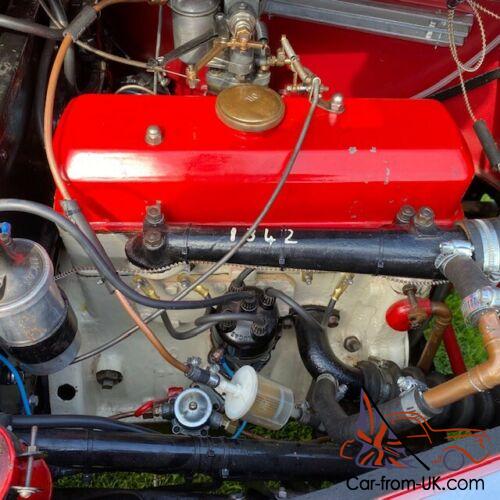

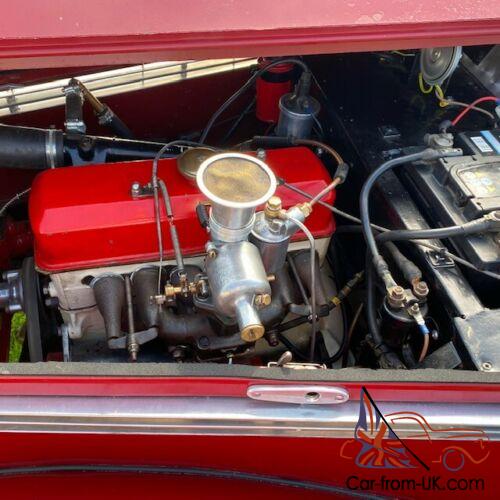

Photographic record of chassis up rebuild incl engine.

Completely re-chromed and re-trimmed.

Fitted trafficators & spotlamps. Brand new tyres Originally supplied and registered by G Healey & Sons of Gloucester in Nov. 1951

Original reg LDD 336 and history for last 30 years with 2 previous registered owners.

Workshop manual and all invoices for parts etc.

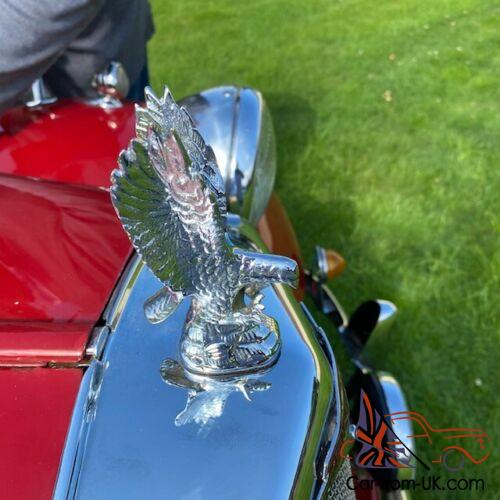

Folding windscreen, Singer "Bantam" Radiator Mascot.

This car must be seen to be appreciated.

Possibly the finest example extant Available for inspection by appointment in South Glos Serious enquiries only Please call 8 for appointment to view Model details below Singer 9 Roadster 1939-1949

[ edit ] 9 Roadster 1948 Singer 9 Roadster Overview Production 1939-1949 Powertrain Engine 1074 cc

I 4 Transmission 3-speed

manual Chronology Predecessor Singer Bantam tourer Successor Singer 9 Roadster series 4 Asee below Engine

Roadster tune Bantam

Singer Nine Overview Manufacturer Singer Motors Limited Layout Configuration inline four [1] [4] Displacement 1074 cc [1] Cylinder bore 60 [4] Piston stroke 95 [1] Block

materialiron, 2 main bearings [4] Head

materialdetachable [4]

compression ratio 6.9:1 [1] Valvetrain overhead camshaft and valves [4] Combustion Fuel

systemdowndraught

S.U.

carburettor, [1]

electric fuel pump on dashboard [4] Oil system forced [4] Cooling system natural circulation [4] Output Power output 36 5,000 rpm [1]

Tax 8.93 HP [4] Chronology Predecessor Singer Nine Successornone

The original Roadster was an occasional four-seat, two-door tourer, mostly based on the

Bantam

saloon with a cheery character. It had Singer's overhead camshaft, 1074 cc

inline-four engine

used in the Bantam range but tuned slightly to give 36 hp (27 k W) at 5000 rpm by fitting a high efficiency "hot-spot"

manifold

and downdraught

SU carburettor , as well as having slightly higher compression. [5]

For 1940 sliding glass panels replaced the celluloid in the sidescreens along with other equipment improvements. A chromed front bumper was now standard as were twin

aero screens

for use when the windscreen was folded flat to reduce frontal area. A fitted suitcase was supplied to take full advantage of the usable space in the luggage compartment. [5]

Performance was handicapped by the use of the Bantam's three speed gearbox and top speed was in the order of 65 mph (105 km/h).

Advertising copy incorporated "from the inspiration of the

Le Mans

model" though the Singer sports-racing link remained deliberately muted after the death of 8 spectators in September 1936's

RAC Tourist Trophy

on Ireland's

Ards Circuit , the Ulster TT. In that era the TT was a handicap and won by either MG or Riley. Unlike the Le Mans the Roadster was designed and built so it could be sold at a moderate price.

The makers claimed a top speed of 70 mph (110 km/h) and acceleration: 0 to 30 mph (48 km/h) in 6 seconds and 0 to 50 mph (80 km/h) in 18 seconds. Standard equipment included a spring steering wheel, concealed spare wheel, 12-volt electrical system and windscreen wipers. [6]

The body was built in the traditional method of

aluminium

panels fixed to a wooden framework. The suspension used

leaf springs

and was non independent with rigid

axles

front and rear. The

brakes

were mechanically operated.

The successful Roadster re-appeared following the war, in 1946, with these modifications: non-lubricated rubber shackle bushes, improved seating accommodation provided by moving the engine forward and an improved lid at the rear of the body providing a flat platform for luggage. [7]

These changes seem to have improved the handling. [5]

Better engine mounts and other isolations were introduced, providing a smoother ride and lessening maintenance. Cars began to filter out to the dealers in September 1946. [8]

Nearly all post war production was exported the car being popular with the Elite in India and featured in the collections of a few Maharaja's.

Prewar For 1946 the engine was moved forward leaving more passenger space Postwar Singer 9 Roadster series 4 A 1949-1950

[ edit ] 9 Roadsterseries 4 A 9 Roadster series 4 A 1950 Overview Production 1 2 made [2] Powertrain Engine 1074 cc

I 4 Transmission 4-speed

manual Chronology Predecessor Singer 9 Roadster Successor Singer 9 Roadster series 4 ABSinger 9 Roadster series 4 ACsee below

The Roadster was updated to the 1950

4 A

model in September 1949 by fitting the four speed gearbox from the

Singer Hunter . A

Solex

carburettor

replaced the

SU

used on the previous car, adding one extra horsepower. [9]

The driving position was also improved, with easier entry and egress, and the Nine Roadster's awkward gearchange was ameliorated as the gearbox was moved back. [9]

The bumpers on the 4 A are slightly larger, stronger, and rounded towards the tips. Singer 9 Roadster series 4 AB and 4 AC 1950-1953

[ edit ] 9 Roadsterseries 4 AB and 4 AC 9 Roadster series 4 ABregistered May 1952 1074 cc Overview Production October 1950-January 19531000 approx made [2] Powertrain Engine 1074 or 1194 cc

SOHC

I 4 Transmission 4-speed manual Chronology Predecessor Singer 9 Roadster series 4 ASuccessornone. Singer SM Roadsterremained in production

By October 1950 the further improved 4 AB Roadster appeared. While superficially similar, this has an independent front

suspension

by coil springs and a hybrid, "hydro-mechanical" brake system by

Girling . Externally, there is a shortened bonnet and disc wheels, as well as fixed sides to the bonnet. The fenders were also redesigned, becoming curvier and deeper. [10]

The steering box also received alterations, mainly aimed at centering it in the chassis so as to simplify manufacturing alternately right-hand or left-hand driven examples. The 4 AB continued in production alongside the larger 4 AD until January 1953.

The prototype 4 AC (built in about a dozen examples) used a slightly larger 1194 cc engine. This was a down-sleeved version of the 1.5 litre version as fitted to the

Singer SM 1500 , and part of an attempt rationalize Singer's lineup. [11]

registered January 1951 1074 cc

Singer SM Roadster series 4 AD 1½-litre 1951-1955
