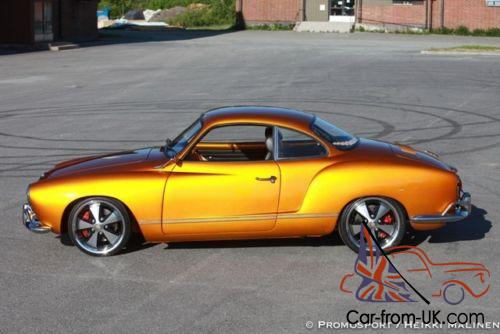

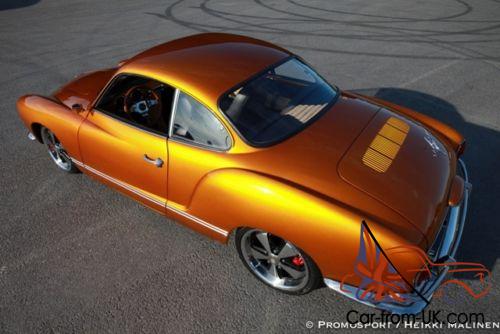

1959 Volkswagen Karmann Ghia type 14

Car color is ”Pagan Gold Candy” from House of Kolor

-

Stainless steel America style bumpers

-

All chromium parts re-chromed

-

Car has been sand blasted. welded and all the joint has been tin plated

-

All the parts in the car has been restored or replaced with new

-

No body modifications

-

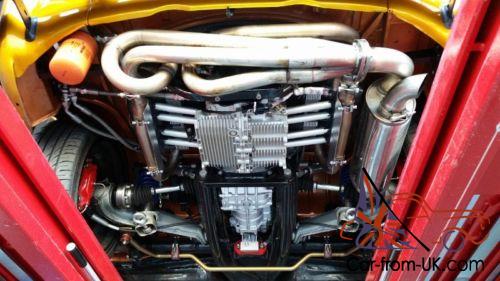

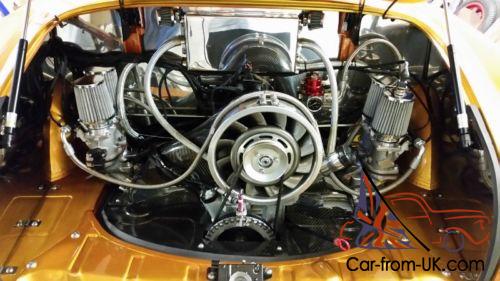

Engine:

-WBX case model 1. 9 DG 85 and older. converted to air cooled

- Torsten Pieber bushings for type 1 lifters

- std bearing housing

- 84 mm WBX crankshaft with counterweight with 0. 5 main bearings and Chevrolet rodbearings made by DPR

-H- Rods. length 5.

- Fly wheel. type 4 200 m Cromo

- Camshaft JPM 06908 275¤ 0. 50” lift 10. 8 mm

- Lifters type 1 Torsten Pieber toolsteel 55 g

- Cylinders AA 101. mm

- Chevy 350 67-70 Pistons 101. 6 mm ( Product number SEAH 345 DCP) rings (Product number SPE 251 X) weight of pistons 494 g and pins 148 g

- Pistons have 20 cc combustion chambers

- Cylinder heads JMP MS 230 101. 6 mm. inletflow 25” 240 cfm 16 mm lift and exhaustwith same values 180 cfm. Valves Scat stainless steel 48 mm x 38 mm. combustion chamber 39 cc. deck

1. mm. compression ratio 10. 7

-Pauter 1. 4 roll rocker arms with 5 bolt axel

- Logmech Valve springs double HD-1019 Chromoly Retainers

- Logmech push rods DT 7075 aluminium

-CSP Python exhaust. outer diameter 45 mm

-Double 45 mm Throttle bodies. Nozzle Bosch EV 6. 373 cc. 12 ohm.

-Fuel injection Mega Squit ATEcu V 2

-Wasted Spark Bosch Coil

CHASSIE:

FRONT:

2” narrowed front axle with 2 ½ drop spindles and Porsche 944 hubs. Red 9 Design Ez Rider full adjustable Spax Coilover suspensions with 225 lbs springs. 19 mm sway bar. Standard spring rods replaced with Red 9 Design parts.

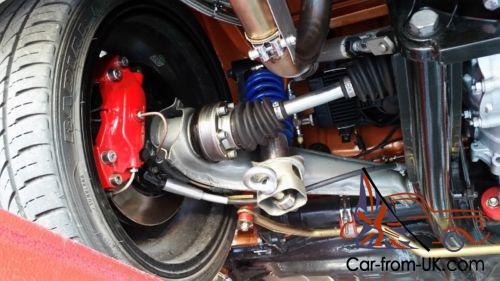

REAR:

Porsche 944:n IRS diagonal armswhich are narrowed 35 mm. full adjustable GAZ Coilover suspension.

550 lbs springs 19 mm sway bar. home made adjustable Käfer Cup support. Standard torsion bars removed.

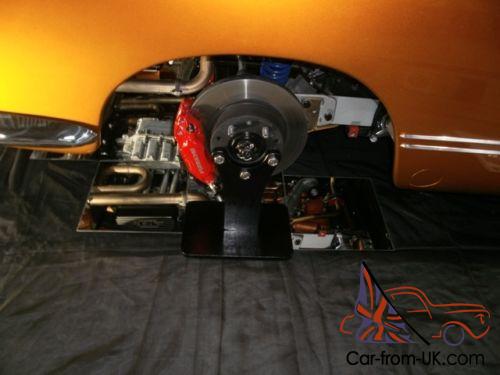

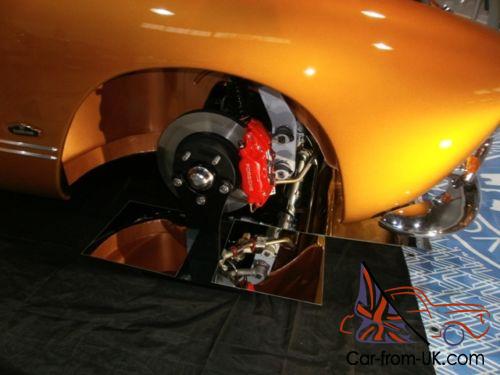

BRAKES:

-4 times Porsche 944 Turbon Brembo cooled disc brakes. front 298 mm x 28 mm and rear 299 mm x 24 mm.

Black Diamond Pads. CSP:n 20. 4 mm main brake cylinder. steel braided Teflon brake lines

TRANSMISSION:

-VW

4-GEAR IRS Transmission AT-code steel shifters. IMI high torque start

-Vintage Speed Classic shifter 40% reduction in gear change travel.

-- Cluch kennedy stage-3 ja daikin pressure plate 200 mm T-1

-Drive joints T-2 100 mm. cromoly drive shafts 376 mm long

WHEELS AND TIRES:

Porsche Fusch copy (SSP Fooks) 7 x 17 et 40 Nangang 185/35 x 17 front and 205/40 x 17 rear

INTERIOR:

-Front seats Audi TT -00 leather. back seat from Alfa GTV -98 leather adjusted to fit

-Leatherette door and other panels custom made.

- center console floating custom made

-

parcel shelf

leatherette custom made

- Handbake and shifter covers leatherette custom made

- Knobs and swiches custom made of stainless steel

- Speedometer and tachometer from Porsche 914

ELECTRICS:

-Caliber Retro player. in front Pioneer 2-way speakers in custom made kick panels Sonda SL 1069. active bas

-All new electrics. new 12 V. Optima Yellow Top battery. removed under rear seats.

The car have

had 7. years of restoration between 2006 – 2014 by owner.

Multible show winner.

Story: volkkaripalsta. com search varios projectos karmann ghia-59
