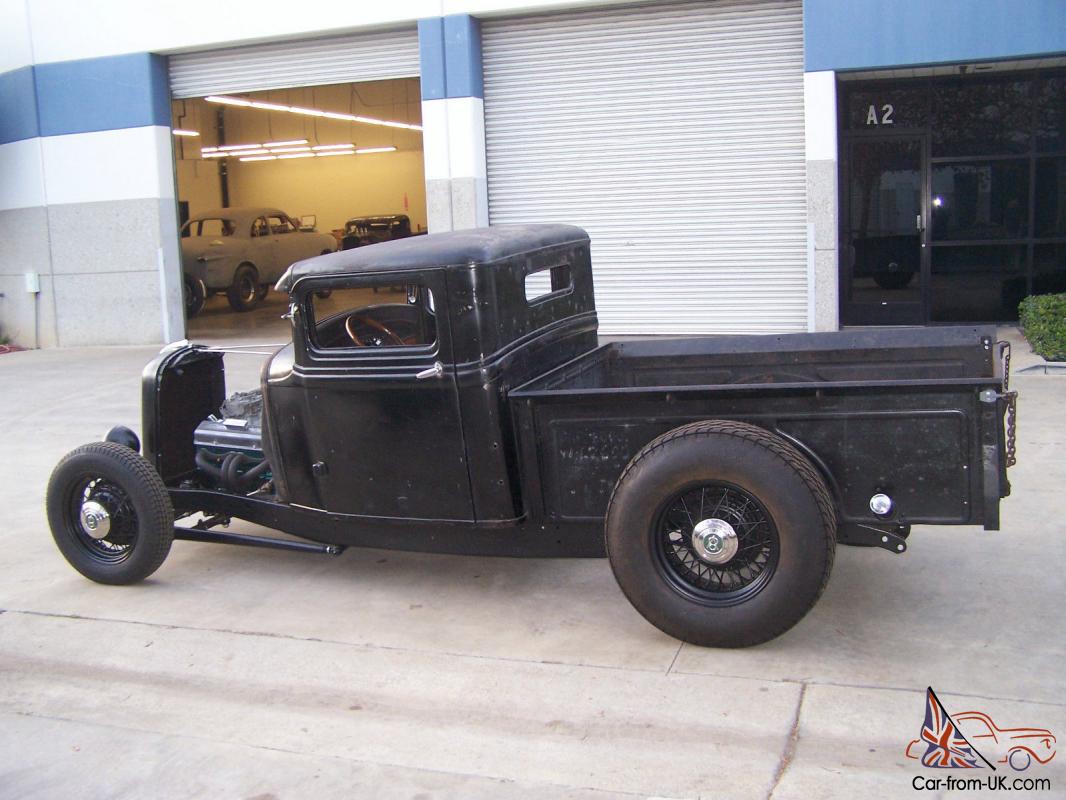

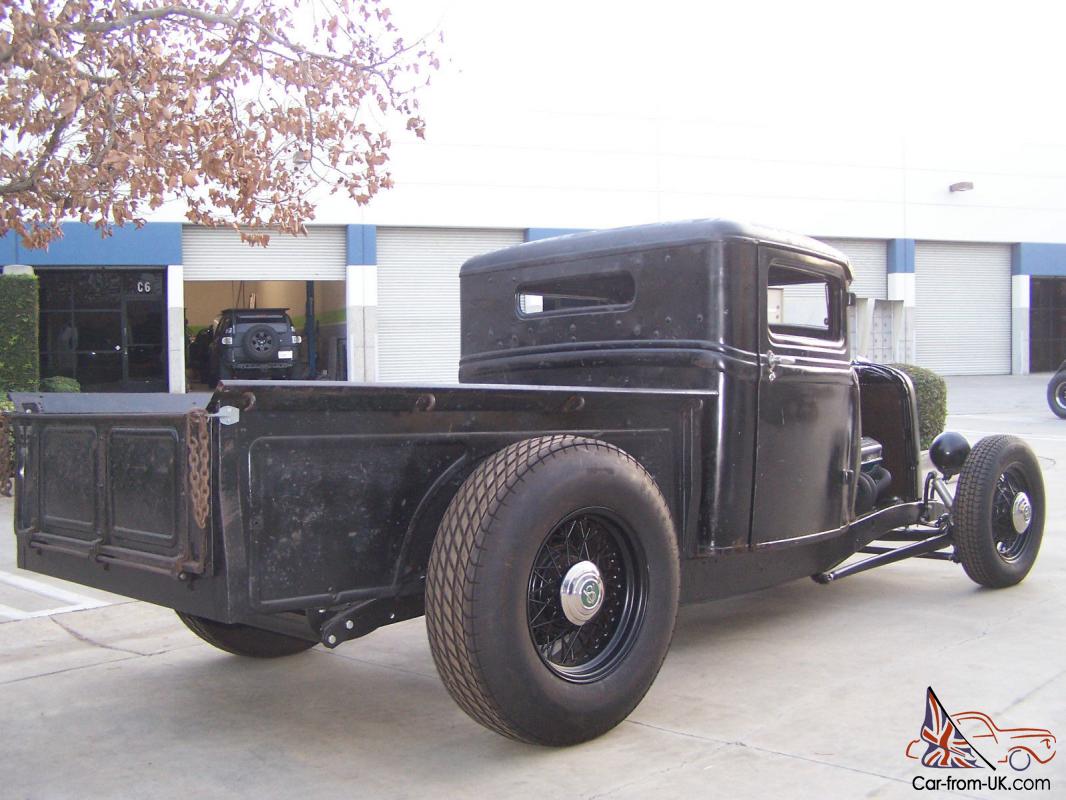

1933 Ford Truck

CAB-

Has little rust along bottom edge of rear corners. one front cab corner and a little bit along the doors. Somebody at one time has patched some of it by riveting small sheet metal patch panel (see pic). I chopped it 6 inches. ground  all the welds on both sides smooth and fogged in with black paint to make it look like it was chopped in the fifty. Windshield frame opens and closes nice and fits extremely nice also. doors line up excellent and latch excellent also. Firewall has had all holes welded up except for stock throttle pedal hole. Has all new wood inside of cab stained dark brown. I have both window regulators and window channels and a new felt kit for the door glass. Original rear window garnish moulding is cut also and fitted correctly. Original 1932 column drop dash is in excellent condition. Original front kick panels are in excellent shape also with original pocket on right side. Seat springs only in nice shape.

BED-

Nice condition with the usual small dents here and there. the front panel of the bed someone replaced about six inches of it and riveted it on. I replaced lowe sections of front stake pockets and patched up a couple of small rust spots along bottom of bedsides. Also installed a new lowe channel below where tailgate mounts to.

GRILL SHELL-

Is a 1934 in excellent shape. Hood is a 1933. The sides are original to the truck and are in extremely good shape. Hood top is in good shape. but has a few waves in it.

CHASSIS-

Original 1934 frame boxed in front and rear. Front cross member has been flattened 2 inches to lower front. Rear cross member has been flattened straight to lower rear. Rear frame kick is C-notched for clearance. Frame has been powder coated and is pitted along both sides.

FRONT SUSPENSION-

Four inch dropped super bell axle. Original 1933 split wishbones. 1947 spindles. 1940 backing plates and drums. Original F1 shock mounts. Steering box is Vega cross steer.

REAR SUSPENSION-

So Cal ladder bar set up. 1936 rear spring. 1965 Ford 9 inch rear end. 370 gears. rebuilt pose unit. New bearings. seals. etc.

New Bob Drake gas tank with original fill spout. Radiator is original with  a new five row  flat fin core.  set up for small block Chevy. Brakes all new hardware shoes. wheel cylinders. and master cylinder. Rubber and steel lines. Entire system is all bled and done.

TIRES AND WHEELS-

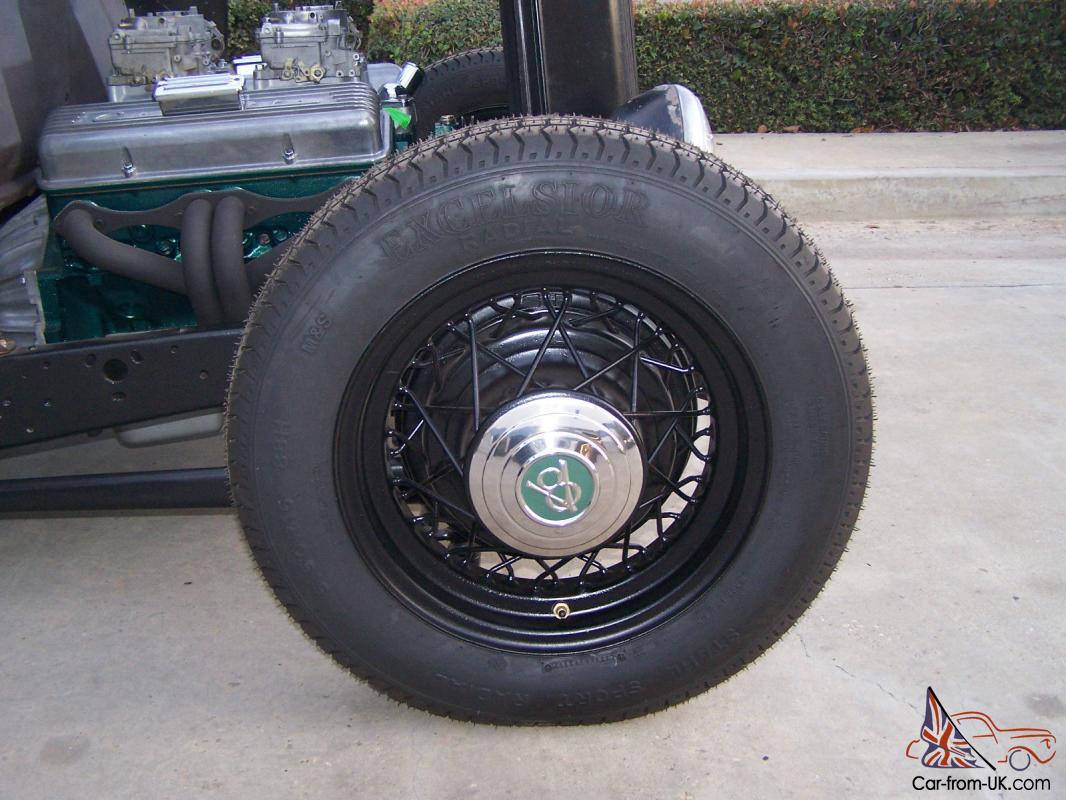

Front wheels are 16 inch original Kelsey Hayes. with excelsior 5. 50 radial tires.

Rear wheels are custom made 17x8 by Wheels Vintique. Tires are firestone 820-17 (dirt track). Entire wheel and tire combo was close to $3. 00. Hub caps are 1932 original V8 and are in mint condition. Headlights are original guide.

MOTOR-

Early 327 Chevy. Steel crank. stock rods. flat top TRW pistons. 194 early vette heads. Stainless steel valves. ported and polished intake and exhaust ports and intake manifold was ported to match. Intake manifold is a rare Offie mid rise. Carbs are early Carters. Cam shaft is a solid Schneider. Lift . 344 duration . 258. Roller rockers . The engine was built by Taylor engine entire rotating assembly was balanced.

TRANS-

M20 Muncie. Used. Hurst competition shifter. All clutch pedal linkage is all hooked up and ready to go.

Entire chassis. parts. etc. were powder coated. new wood block kit for cab mounts.

This truck is about 95% done and would'nt take much to finish and if purchased we could also finish it at Fullerton Fabrication after purchase is completed. This truck was being built as my personal shop truck over the last year and a half. but due to unexpected home improvements I regretfully have to sell it.

It was built with a lot of original patina but also built to be very dependable and extremely fast.

I would be willing to sell this truck w/out motor and trans if interested. For sale locally and I have the right to end auction early if necessary.

Please call for more details if necessary. it's alot easier to discuss over the phone instead of emails.

Rudy Rodriguez (714) 992-4963 or after 7pm (714) 525-8705

I would encourage you to come and inspect truck in person to really appreciate it.

It is being sold AS Is. NO refunds.

I also have a complete set of fenders. the front ones are pretty nice. the back ones need some work. The running boards are in extremely nice condition as is the front panel under the grill and original head light bar. These items are for sale seperatly to the person who buys the truck.
