vw split screen 13 window deluxe camper 1.9tdi engine power steering disk brake

 With much regret I've decided to sell my 1964 13 window deluxe camper it will be sorely missed as it has taken me and the family to loads of shows and on a fair few summer holidays over the years it was even my wedding car! Since the van has been in the uk it has always been garaged and has only ever been used in the summer months. it's been maintained to the highest standard and whatever it's needed it's had at any cost! It has passed every mot with no advisories as its like new underneath and there's no black under seal to hide any naughty's.

  I've owned the van since 2006 im the only UK keeper and the logbook shows its a 1900cc diesel. the van is tax exempt and MOT'd till April 2014
 The van has been restored underneath with new panels as required (see below) and looks like new. Above ground sympathetic repairs have been done to keep it looking un-restored. The upper body rust is surface only and has not deteriorated since ive owned it in the past 6years.

The camper is a 1964 us import deluxe microbus (nicknamed the samba by many) which was the highest spec. most expensive vw van at the time. the van is even rarer than a normal “samba” models as it was a factory special order van with option code M130  to “delete sunroof and panoramic windows” this and the fact the big tailgate split vans were only built 64-67 this makes the 13 window deluxe micro bus a rare bus production numbers wise!

 Even before I started looking for a split screen camper I knew I didnt want a shiny characterless one that looked the same as all the rest I wanted something that stood out from the crowd with genuine patina that had stories to tell about its long and colourful life but that didn't mean I wanted to be welding every mot so the body had to be super solid underneath so a full restoration was carried out underneath.

I've personally owned aircooled vw vans since the late 1990's so I knew after all these years exactly what I wanted that was a van that looked old but had a modern engine brakes and suspension (doesn't everyone!) And that I could get in and drive 1000's of miles a year without having to mess about with every weekend adjusting engine settings and brakes etc so to get a low maintenance van pretty much every mechanical part  has been replaced or upgraded a full proper nut and bolt restoration. Maybe why the van has been featured in both the split screen van club magazine and volks world camper and bus magazine plus winning best custom split at camper jam 2009

 The camper has been professionally converted to run a VW Golf 1. 9 TDI engine  which has been fitted with cruise control which take the stress out of long motorway journeys. The engine has been mildly tuned with a de-cat. EGR delete. free flow air filter and a stainless steel silencer so the van is very nippy and at around100bhp (+ bags of low revs torque) and with the up-rated and rebuilt freeway flyer 091 2litre bay gearbox it will easily keep up with modern traffic but is much smoother to drive in traffic than a modified aircooled van! The van cruises at 65-70mph without even trying and it easily returns 40+mpg on a run (approx double what a 100bhp aircooled van will do) and will go back round to needle stop on speedo if your really in a rush (on private roads obviously ;-)
    With all that extra power the brakes have been upgraded to 280mm vented and drilled disks up front with 280mm drilled disks to the rear with a dual circuit master cylinder and servo to make the brake pedal nice and light to push.
   The suspension has been upgraded to a cb performance 2” narrowed beam up front with KYB gas shocks and at the rear end the van has been upgraded to a  volksheaven type2 IRS kit again complemented with KYB up-rated gas shocks and then the whole van has been lowered around 6”/150mm from standard
 To help keep to van running true at the new higher speeds the steering has been upgraded to a power assisted direct acting rack and pinion steering setup this makes the van much more responsive to drive and takes out the usual steering box and centre pin free play. it Is light to park just like a modern car and  even with the smaller vintage 1960's wooden nardi steering wheel fitted I can park with 1 hand.

no doubt by now you are bored of reading so here is a brief rundown on the main juicy bits:

Rare 1964 13 window deluxe microbus camper still with all deluxe trim parts still fitted. fully restored underbody and engine bay fully 2k repainted in original factory colour turkis grun with photos for buyer to prove what work has been done. I can fully assure you the are no scary repairs covered in bondo and shiny paint done by chuck and hank to rot back through by next spring!!!!!

Creative engineering front safari windows

5 bow roof rack (sides fold down in 30 seconds so van will still fit in a normal sized single garage)

3 point inertia seatbelts fitted to front Porsche tombstone seats. (passenger has swivel base)

ISOFIX child seat mounting on rear seat

Full width roll and roll bed 6'3” long with 5” thick foam(better than at home)

VW 1. 9 TDI engine with 5” monster tach/shift light and vdo gauges

Cruise control

Freeway flyer 091 6 rib 2. 0 litre bay gearbox fully reconditioned. br>
Cb performance narrowed adjustable front beam with KYB gas shocks

Volksheaven type2 irs rear suspension with KYB gas shocks (laser 4 wheel aligned in main agent body shop when fitting)

Disk brake conversion front and rear

Dual circuit master cylinder and direct acting brake servo

Power steering (direct acting GM steering rack with PSA pump with flipped bayball joints to eliminate bump steer) with 1960's nardi wooden steering wheel

7j x 16 Porsche teledials with 15mm/35mm staggered hub centric studded wheel adapters

Front and rear interior heaters running from engine coolant (mega warm not like aircooled!)

Eberspacher D1LCC diesel night heater

240v mains hookup with rcd and zig unit for caravan sites

Twin 86ah leisure batteries with split charger for power when wild camping

Large 850watt inverter ideal for charging phones. running computers dvd players and Tvs (will even run power tools its so big!)

Amplifed JBL 10” speakers for  iphone. Ipod tablet connectivity (3. 5mm jack input)


So there you have it a quick run down of the spec. the vans honest with no fresh paint and it is exactly as ive described it. A good friend once said to me “better honest rust than dishonest paint” bear this in mind with shiny vans! the van is solid and has nothing to hide every scratch and mark tells a story. In the last 6 years I've been all over the country with no problems whatsoever it's been a hoot to own and drive attracts so much attention whether driving around town show boating or at vw shows/festivals
 Im genuinely only selling as I have another big long term project nearing completion plus 4 other cars and this one does the least mileage every year so if it doesn't sell for what I want I will just keep it.

Any questions about the camper from genuine buyers please email me through eBay (please no tyre kickers or people wanting advice on how to convert there own van as I do have a busy life! )

The van will be at vanfest all weekend if anyone wants a viewing there to save time driving cross country?

Right then if your still reading time to put the kettle on get biscuits ready and settle down to read the full spec sheet as its rather long

 Body
1964 vw split screen deluxe microbus with m130 option code aka the “13 window deluxe” had full lower 12” resto. the list of new panels that were fitted is as follows:

Complete cab floor
2x outer sills
2x inner sills
Opposite side to cargo door floor to sill repair panel
Top hat repairs
4x outriggers
4x jacking points
2x battery trays
Inner lower front panel
Outer lower front panel
75mm lower nose repair panel
2x lower A post repair sections
n/s complete wheel arch/cabstep
o/s complete wheel arch/cabstep
Custom made spare wheel well made to fit full width Porsche spare wheel
Narrowed t25 engine inspection hatch fitted to boot floor
Various small localised repairs

All repairs have been done with the van rolled over on a car tillter and have been welded with a proper mig (not a 100amp hobby welder) to factory standard.
Chassis rails/floor pans and all repairs have repainted in por15 arches. cargo and cab floor have been gravitexed and the whole lot was then painted in solvent based 2k turkis grun paint (original colour) as was the engine bay

The body has been treated to a full length 5 bow custom made roof rack with folding side which allow the van to fit in a standard height single garage

Creative engineering front safari popout windows has been fitted

Extra rear pop outs were sourced for the rear most “deluxe only” back side windows so you now have all 8 side windows as pop outs!!!! All 8 have new body to frame seals

New cab door seals

New stainless steel mirror arms with stainless mirrors

New red rubber trim in deluxe belt line trim

All locks are original and work from a single key which is very rare! there are 2x keys included with the van


ENGINE & GEARBOX

VW 1. 9 TDI engine (1Z engine code) mildy tuned with free flow air filter & exhaust fitted. decatted and stainless backbox. gr valve deleted
 Fully wired as per vw specs giving full obd2 diagnostics to work with diagnostic scanners/vagcom etc custom road speed sensor added and ecu enabled to give full working cruise control. The engine is mounted on VW hydro engine mounts with a custom cradle to give a smooth idle and reduce interior noise at higher engine speeds. the engines vitals are monitored by 3x VDO gauges (water temp/oil temp/oil pressure) mounted in the over head air scoop along with a 5” monster tach rev counter and shift light. the engine is cooled by 2x alloy cored VW radiators in a belly pan scoop ensuring the engine runs nice and cool often a problem with poorly engineered conversions.
 The engine runs a stock 228mm tdi solid flywheel and standard clutch meaning if needed it would be easy to find replacement parts anywhere in the world

The gearbox is a late 2. 0 bay (the one everyone wants with the 4. 57 diff) 091 type (cp code) 6 rib freeway flyer gearbox which has been reconditioned around 3 years since with new bearings as required. full set of syncro's new 3rd/4th gear hub. new shifter hockey stick and full seal set. plus new weedle 0. 70:1 4th overdrive gear and HA projekt uprated tdi input shaft. the case is painted black with stainless fixings. Fitted with a empi quick shift kit to gear lever. The gearbox is mounted on void bushes to again reduce engine noise. A 1. 7kw reduction gear starter motor has been fitted to easily start the engine

Driveshafts are100mm T2 CV joints both ends rebuilt with new GKN lobro cv boots

STEERING
Direct acting power assisted steering (does away with steering box and all linkages under van to completely eliminate free play) custom hydraulic hoses and PSA electro hydraulic pas pump (even with small1960's nardi wood rim steering you can still park with 1 hand) flipped bay ball joints in spindles to reduce bump steer

SUSPENSION
 CB Performance adjustable ride height narrowed front beam fitted with KYB gas shocks. late bay front hubs rebuilt with new bearings and seals and bay spindle lock nuts.

Volksheaven IRS Rear suspension kit with genuine 68 spring plates. brand new genuine A-Arms. late bay rear hubs rebuilt with Timken/SKF  brand european top quality bearings and seals. KYB gas shocks

BRAKES & WHEELS
280mm vented/drilled front disk conversion on late bay front hubs with 15mm hub centric studded Porsche wheel adaptors

280mm solid drilled rear disk conversion on late bay hubs with 35mm hub centric studded Porsche wheel adaptors

Custom handbrake cables

All flexi hoses and solid brake lines have been replaced

8 ½j x 16 Porsche 928 teledials wheels refurbished with polished lips
falken zein 195/45/16 front  and 205/50/16 rear tyres

Porsche 928 space saver spare wheel with full size spare tyre fitted

INTERIOR & HEATING
Porsche tombstone seats with swivel base fitted to passenger side

3 point inertia seat belt fitted to front seat (doesn't have any seat belts factory fitted)

ISOFIX child seat mounting on rear seat

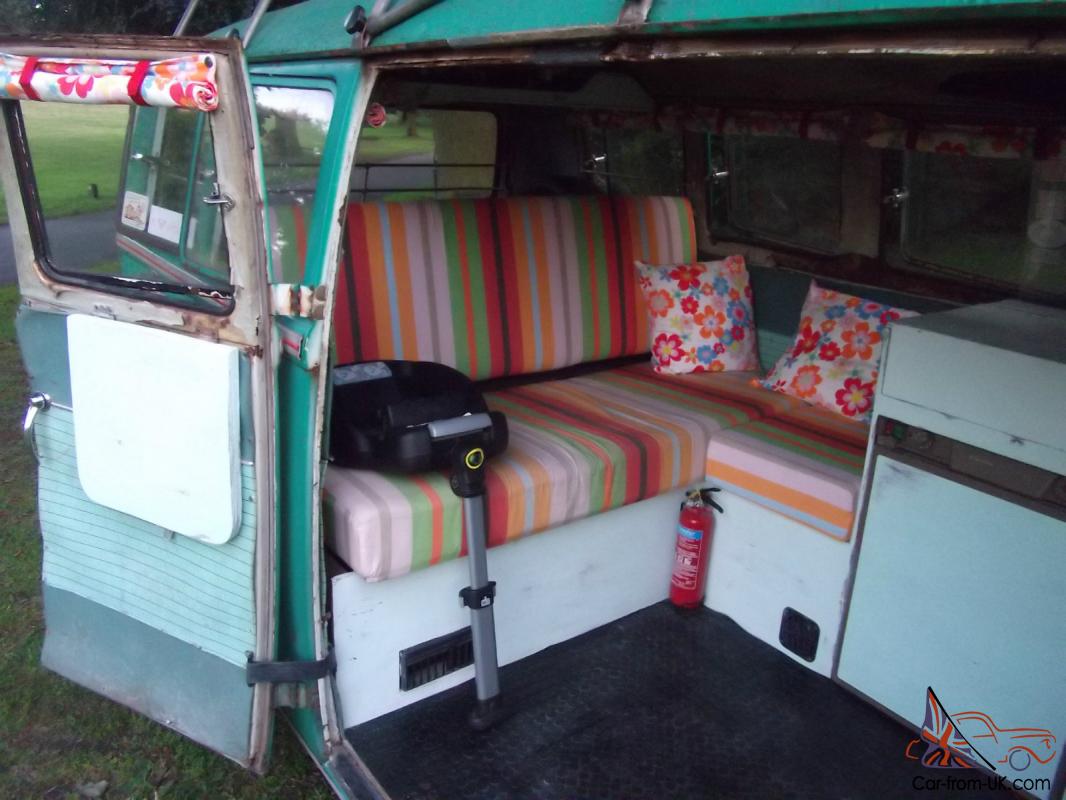

Full width rock and roll bed (6'3”?long) trimmed in Ikea deck chair style cloth with 5” thick foam

Shabby chic style cupboards with genuine cath kidstone pop flower curtains and cushions

Camping Gaz camping chef cooker with built in toaster powered by camping gaz 904 bottle in cupboard with safety gas drop out vent in floor

Electrolux 3way fridge (240v and 12v are connected but not gas as I didn't want to cut a hole in long side panel of van for a vent as its too nice and straight)

Westfalia style roof storage locker and cargo door cupboard with washing up stand/table

Lots of  storage under rear seat. side seat and cupboard behind driver seat.

Hidden custom front heater box that blows hot air through screen vents and up totum pole as per original heater but coolant powered

T25 multivan rear auxiliary heater under rear seat/bed (both heaters get very toasty )

Eberspacher D1LCC diesel powered blown air night heater. runs independent of other heating systems

JBL 10” powered door speaker setup with 3. 5mm input for ipod. smart phone etc

240v mains hook up with twin rcd's for zig unit and sockets for mains power on caravan sites

ZIG CF8B unit to charge leisure batterys when on mains hook up

2x large 86AH leisure batterys with split charging from engine's alternator and cut off isolator keys. br>
850w large power inverter ideal for running Tv's/computers or mobile phone charging etc (even big enough to run power tools)

 Midland cb radio 40 channel and eu bands. with removable Springer aerial mounted on roof rack

Any questions or for a viewing please contact me through ebay thanks for looking
