1970 Fully Restored AAR Cuda

Relisted one last time. lowered reserve dramatically. don't ask auction will run bid to own as it will sell this time I'm sure.

1970 AAR Cuda was restored at MCR Platinum Level and completed in August 2008.

Chemical strip & e-coating process.

Full rotisserie pain job.

All components and subassemblies completely restored.

Please click on or copy and paste the following link to view all photos taken during the complete restoration process:

com/gallery/main. php?g 2_item Id=38881

The AAR Cuda was a midyear introduction.

AAR stood for Dan Gurney's Al American Racer's Team. and the AAR Cuda was designed to compete in the Trans-Am series against such cars as the Boss 302 Mustangs. Z-28 Camaro and AMC Javelins.

Standard equipment included a special version of the 340 ci engine with 3 x 2 v induction.

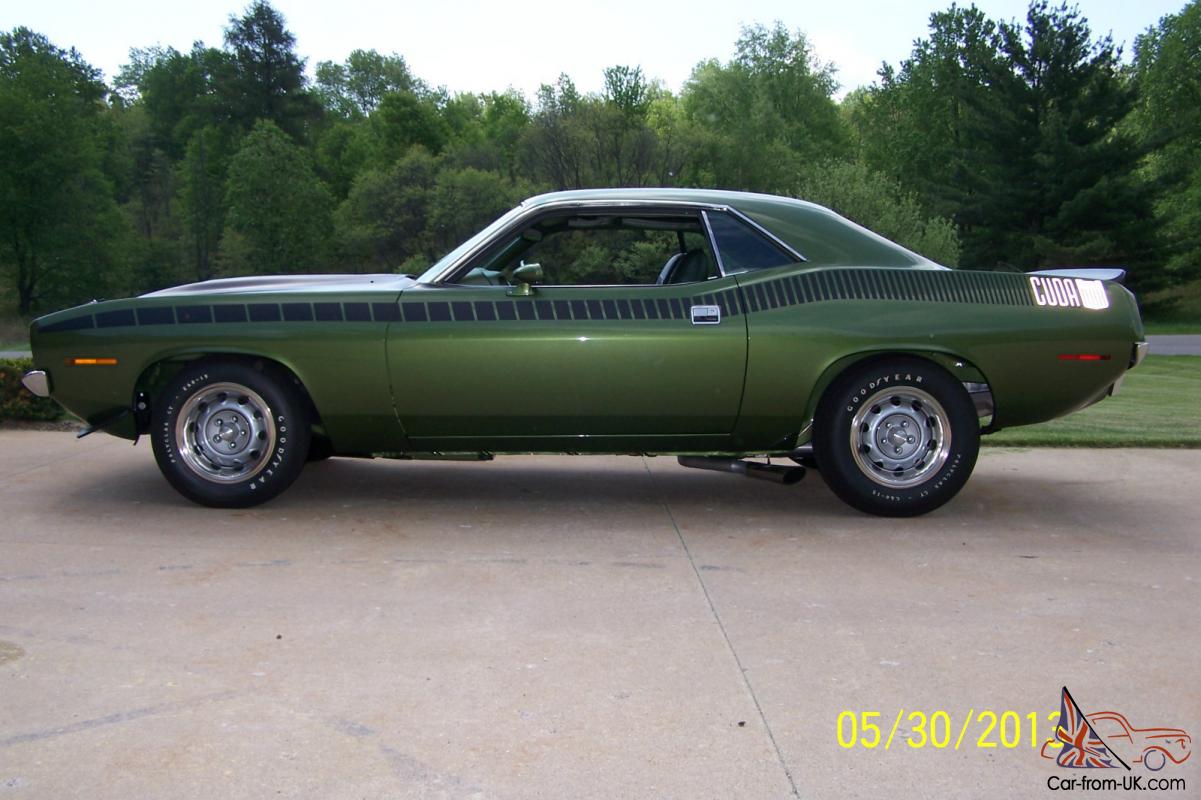

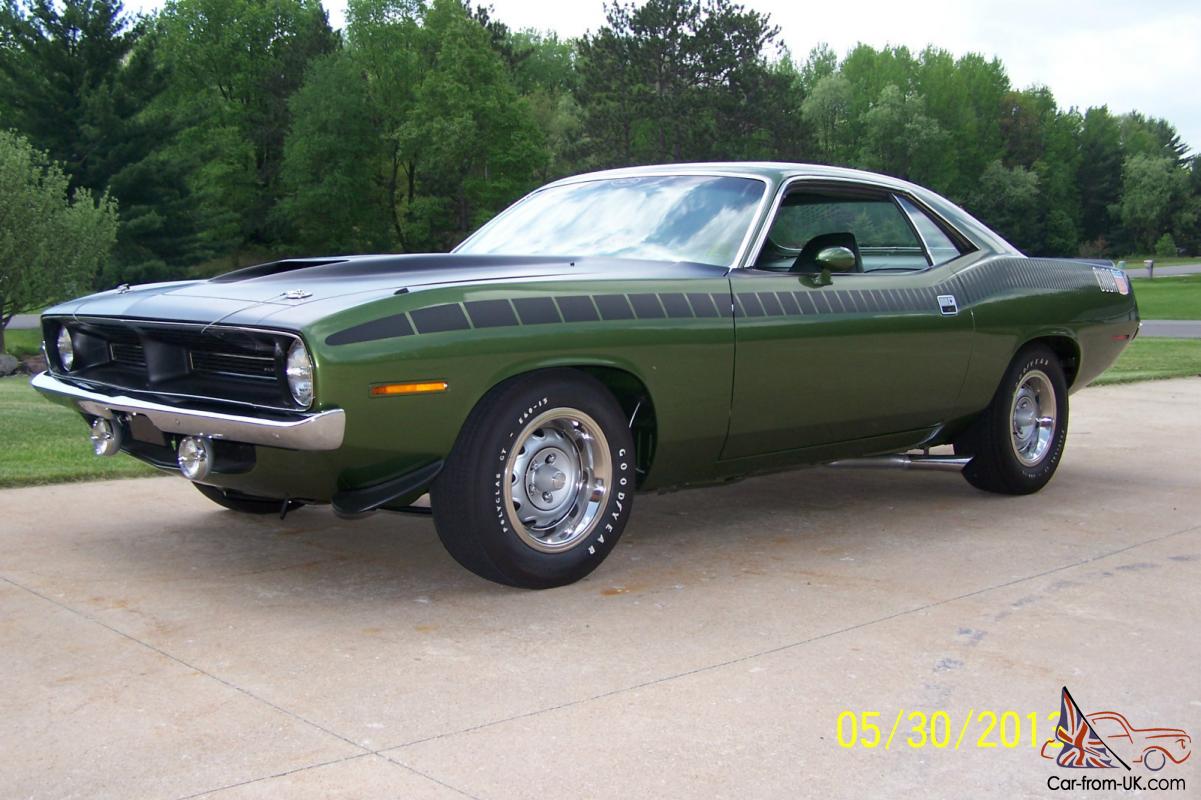

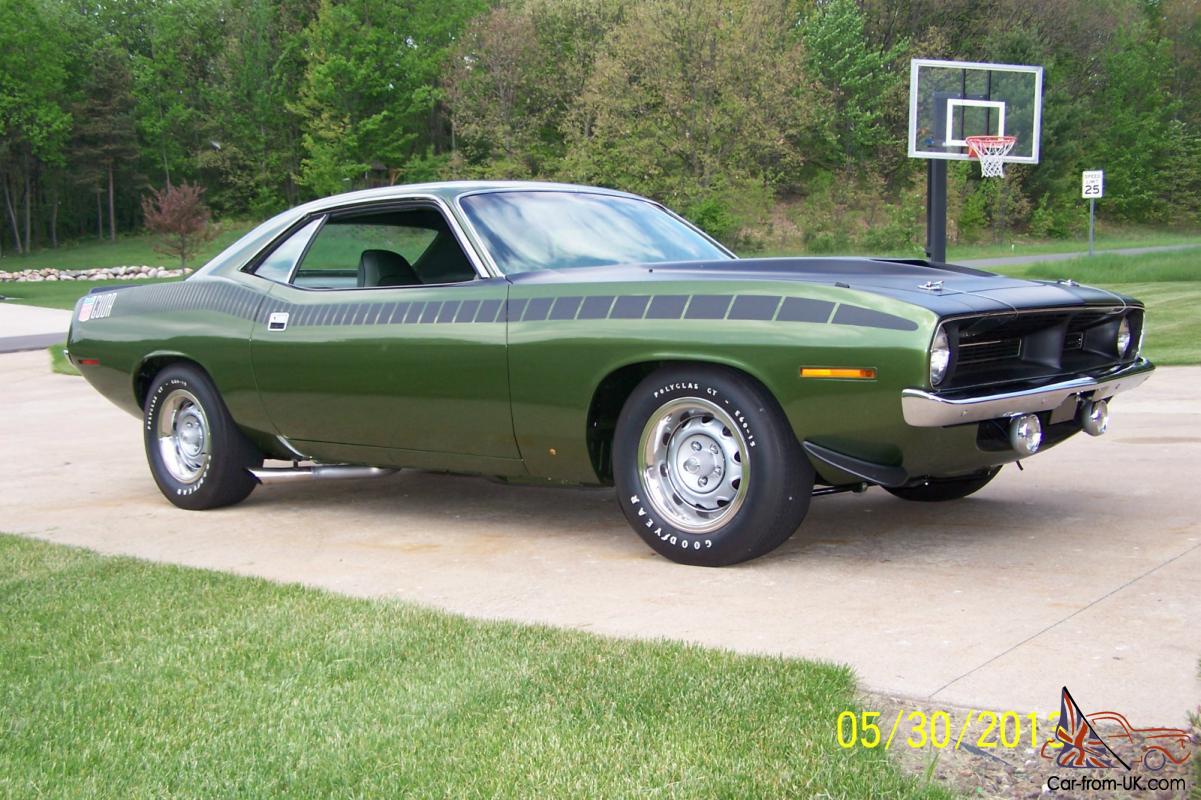

The AAR also sported a unique side exhaust system flat-black paint treatment on hood cowl and fender tops a front and rear ducktail-type spoiler. and a black 23 piece side tape treatment.

The AAR Cuda and the T/A Challenger were the first production cars to come standard with different size front and rear tires. E 60 x 15 inch and G 60 x 15 inch respectively.

This AAR Cuda is 1 of 2774 total AAR's and 1 of 1120 4 speed manual transmission cars produced.

The fender tag breakdown is as follows:

VIN-BS 23 JOB 297188 B- Car line. Plymouth Barracuda S- Price Class. Special. AAR Cuda 23- Body Type. 2 Door Hardtop J- Engine. 340 290 hp 3-2 BBL 8 Cylinder O- Model Year. 1970 B- Assembly Plant. Dodge Main. Hamtramck. MI. USA 297188- Sequence Number. 297188 th Vehicle

E 55- Engine. 340 8 Cylinder 3-2 BBL. 290 hp

D 21- Transmission. 4-speed manual. floor shift A-833

Ef 8- Paint. Ivy Green Metallic

H 6 F 8- Trim H-Trim Grade. High 6-Tirm style. bucket. vinyl F 8- Trim Color. Green

000- Upper Door Frame Pain. None. Full Door Panel

407- Production Date. Tuesday April 7. 1970

M 02575- Vehicle Order Number M- Sales Bank. USA Order

EF 8- Roof. Ivy Green Metallic

A 01- Light Package (optional)

A 53- Trans Am Package including the following standard items not on fender tag: B 42- Front Disc Brakes/11 inch Drum Rear D 56- 3. 55:1 8. 75 Rear Axle D 91- Sure Grip Axle N 65- High Capacity 7-Blade Torque Drive Fan S 13- Rallye Heavy Duty Suspension with Rear sway Bar S 31- Front Sway Bar U 01- E 60 x 15 (front) / G 60 x 15 (rear) Goodyear Polyglas GT RWLrrr W 21- Rallye Wheels 15 x 7 with Polished Trim Rings W 34- Space Saver Spare Tire

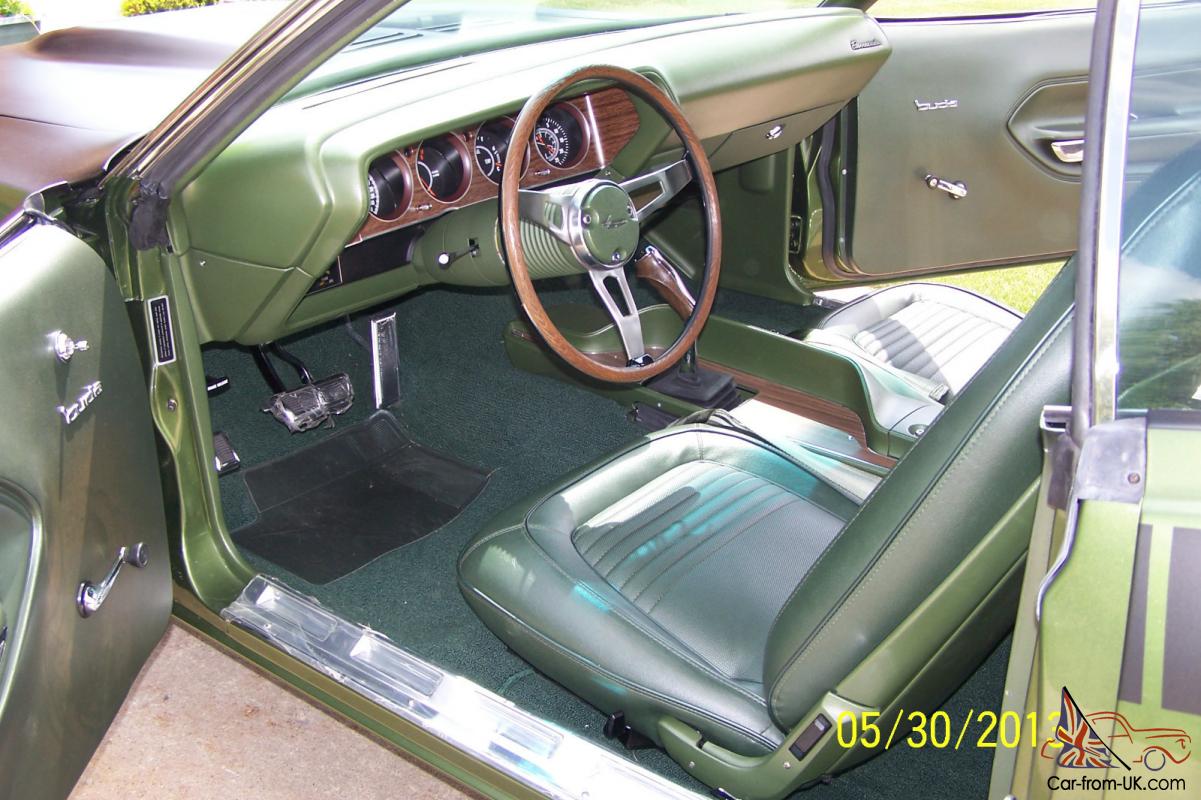

A 62- Rallye Dash (optional) including: 150 mph speedometer. trip odometer with push-button reset. fuel gauge. F 96 - oil pressure gauge. temperature gauge. ammeter J 21- Electric clock J 25- 3-speed variable wipers J 64- Wood grain instrument panel applique L 76- Heater control floodlight

B 51- Power brakes

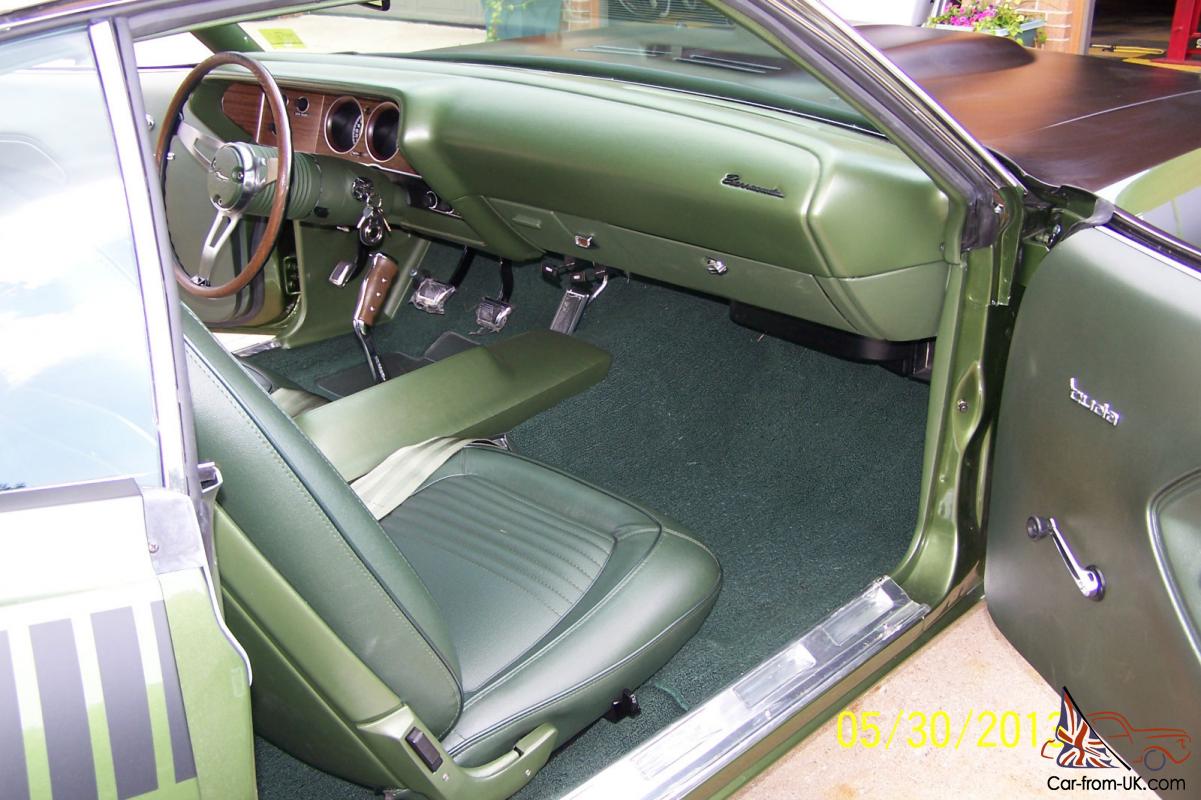

C 16- Console with woodgrain panel (optional)

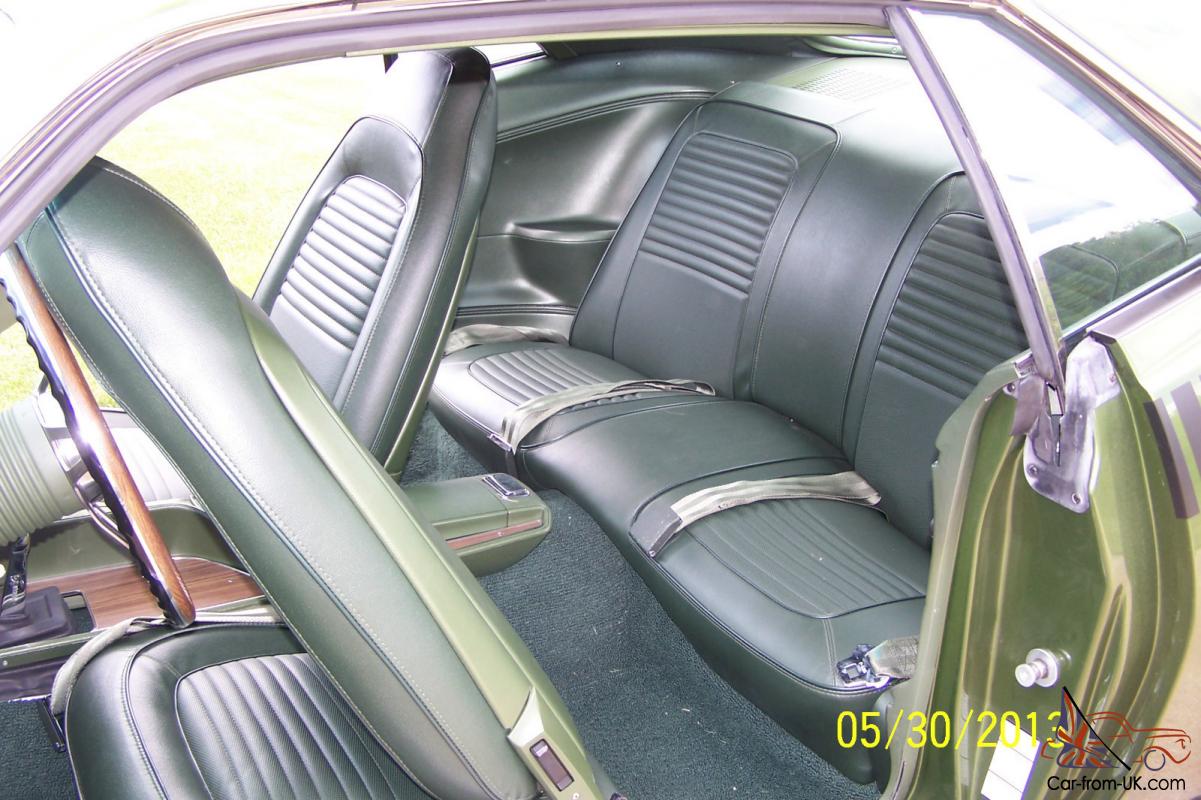

C 55- Bucket seats (optional)

G 34- Left hand remote outside mirror. painted

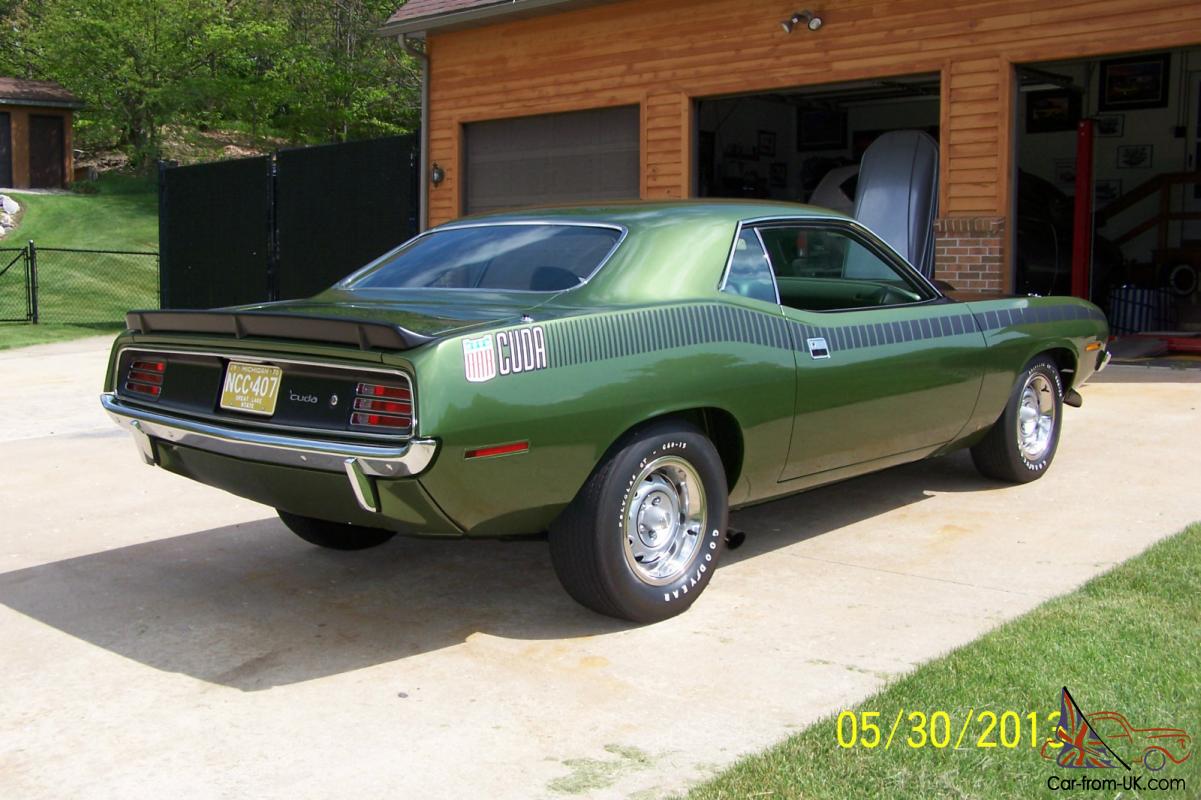

J 82- Rear ducktail spoiler

L 31- Turn signal lights-fender (included with A 01)

M 21- Drip rail mouldings

M 88- Deck moulding treatment

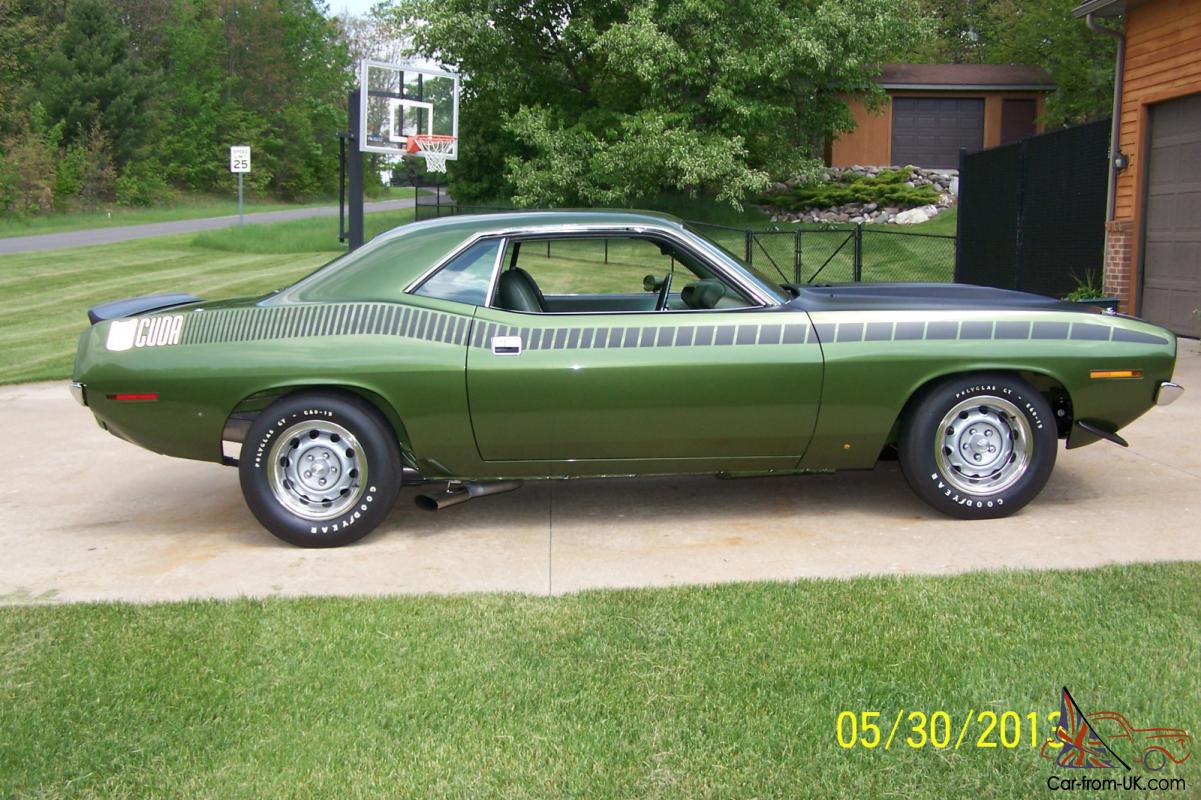

N 44- Side exit dual exhaust

N 85- Tachometer (included with A 62)

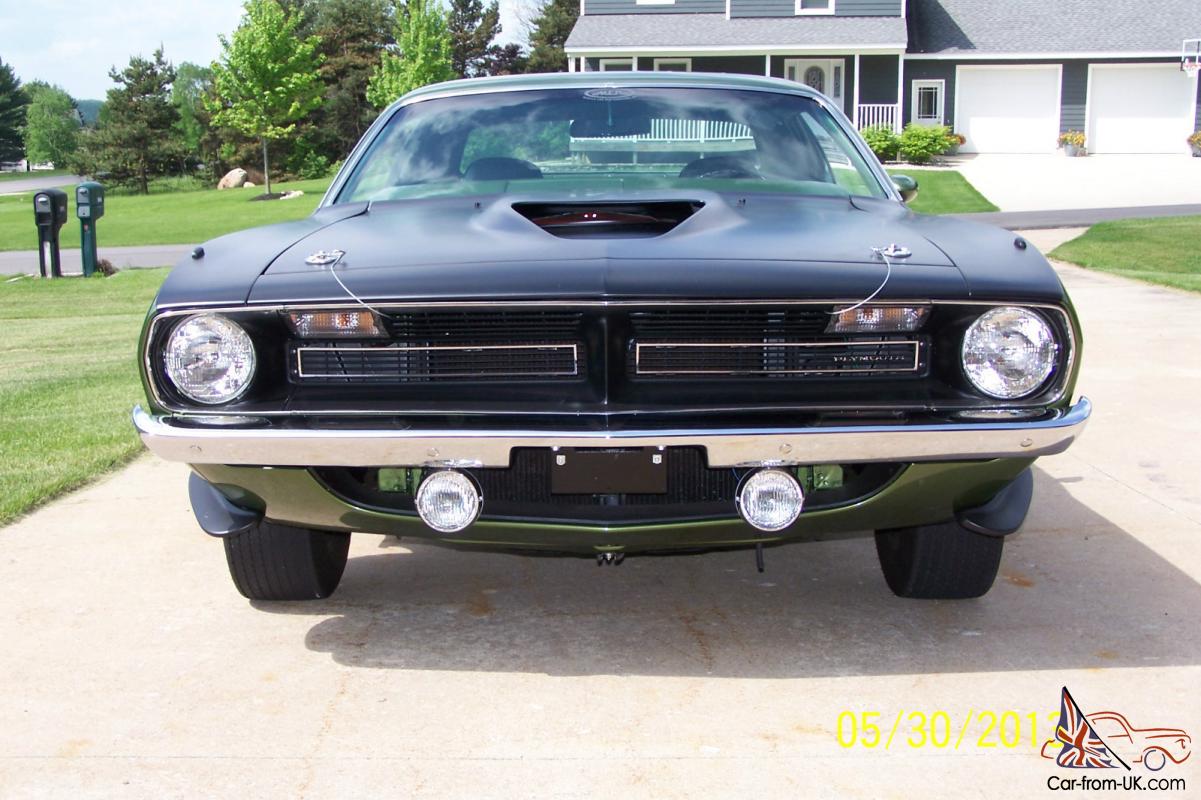

N 94- Fiberglass Fresh Air hood with Carb Fresh Air package. rear mounted antenna

N 95- Evaporative emission control (California)

R 11- Radio AM Music Master 2 watt

V 6 H- Longitudinal strobe stripe. Trans Am. black

This particular AAR Cuda was subject to a 2. 10 labor hour restoration and has a numbers matching transmission. fender tag and vin tag.

The original motor was reportedly blown up back in the 70's.

The current motor was acquired from a totaled AAR Cuda from the 70's and was purchased and rebuilt by Wheeler Racing Engines. Blaine. MN.

The motor was rebuilt using only the best parts available and comes with a dyno sheet. from Wheeler. stating the following engine specs: 4900 rpm with 404. 5 ft. lb. /torque producing 377 rwd horsepower.

I have receipts and documentation for everything on this car.

A build sheet was found in the car. unfortunately it was not for this car.

However all body stamps and vin numbers do match.

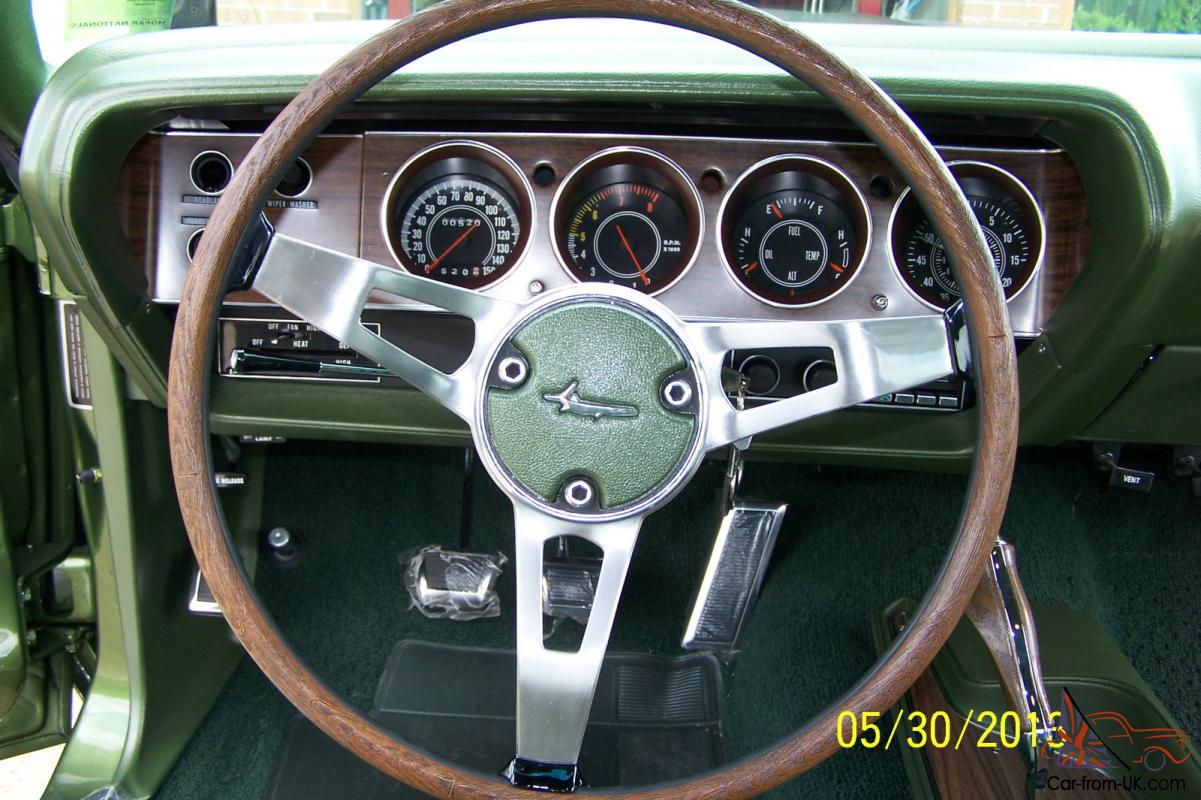

The only deviation from stock is the steering wheel which is now a rimblow steering wheel where originally the car was equipped with a standard wheel.
