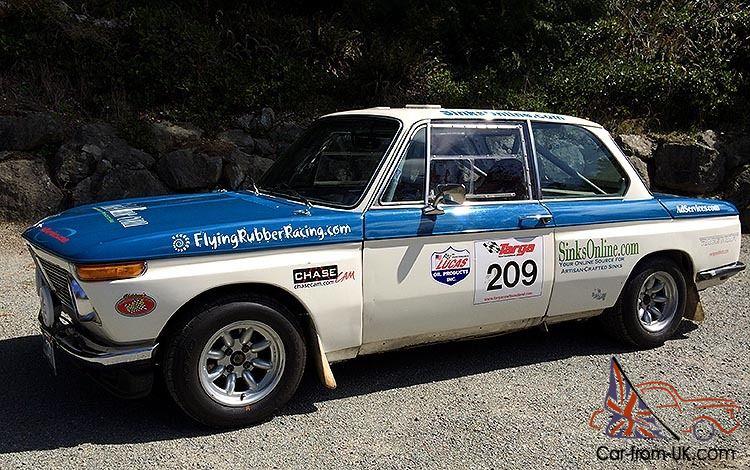

BMW 2002 road race / rally car, M10

1969 BMW 2002 with fresh motor ready to go. Set up for tarmac rally and raced in several events. most notably Targa Newfoundland. Would also be a great car for La Carrera Panamerica.

Engine:
• Custom JE pistons
• 11. 2:1 Compression to run on pump
• Schrick 328 Camshaft
• S14 Crank with M3 Rods
• VAC motorsports upgraded oil pump (with keyed shaft and sprocket)
• Aluminum flywheel. E30 M3 clutch and pressure plate
• Lester Owen forged steel rocker arms
• Completely rebuilt by C&D machine in Kirkland. WA Feb 2013 with only approximately 200 miles for break in and fuel injection mapping/tuning.

Stahl header with stainless steel exhaust running to the rear of car with muffler
New optima battery Feb 2013
Bosch 044 electric fuel pump
Omex Fuel Injection ECU
MM Competition Systems Ltd. – fuel injectors (brown - 329cc). Runs with crank trigger. throttle position. water temp and air pressure sensors inputs
Distributor-less ignition with GM coil pack providing spark
Jenvey Throttle bodies
Getrag 262 CR 5-speed box (used in BMW 6-series cars) Completely freshened before installed in 2009
Custom aluminum Ron Davis radiator with T-Zero thermostat housing
85 amp alternator
E30 M3 starter
Modified pedal box uses Mercedes master cylinder mounted down on the front of the pedal box
Stainless steel flex brake lines
UUC shifter (modified by to use E36 aluminum base and shifter bushings)
Differential – E30 4. 11 LSD
Front disc brakes with Volvo 142 calipers
320i rear drums brakes
Porterfield R4 brake pads front and rear
12 gallon fuel cell with external filler neck
Lexan door windows with sliding vents
Forward and reverse opening roof vents
Compomotive 13x7” wheels with two matching spare wheels. Toyo RA-1 205-60/13 tires. both spare wheels mount to custom quick release rack in trunk
Aftermarket heating and defogging unit with 3 speed fan
LED map lighting
Momo Corse acropolis Carbon Fiber/Kevlar race seat
Sabelt Left and Right side race harnesses
Co-driver foot brace
Helmet box
½” thick poly plastic skid plates running the length of floor pan
Quickly removable engine skid plate with steel frame and same ½” thick poly plastic
Wipers. washer fluid. turn signals. headlights high/low beams. brake light. tail lights. horn - all in working condition.
Extensive roll cage built for safety while still allowing for driver and co-driver comfort

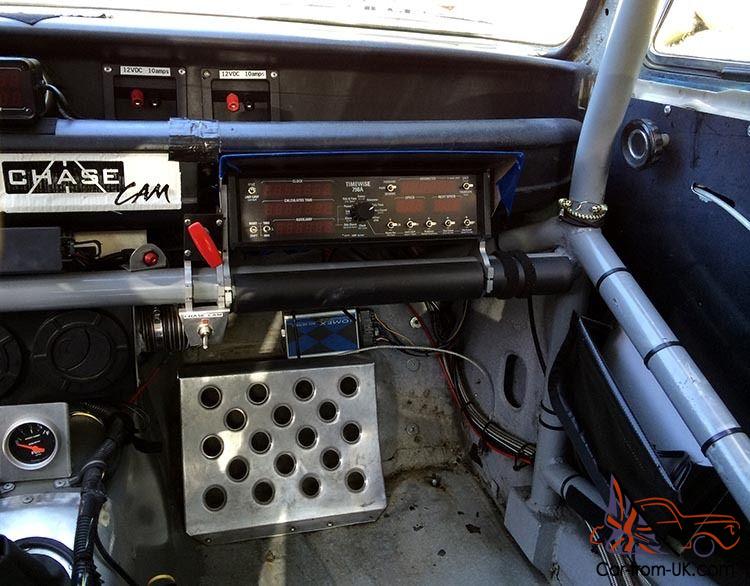

Dash mounted Timewise 798A Rally Computer with remote driver display. 12v remote power jacks on dash.

A box of support parts are included such as brake pads. fan belt. oil filter. etc. Also included is a set of mounted gravel tires. only used for one gravel event day.

Car has a title and is street registered. Paint and overall body is in great condition. Schnitzer style flares. Ready to RACE!

For more photos and in-car video. see: www. flyingrubberracing. com/rally-featuring-willy/

Also published at eBay.com

Want to buy this car?
