1970 Oldsmobile 442

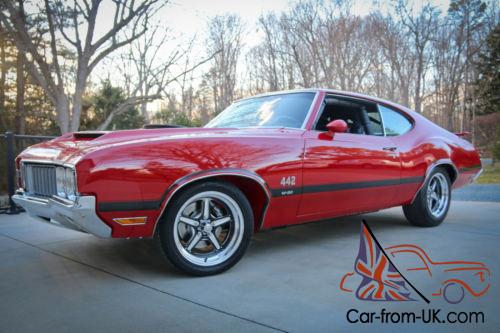

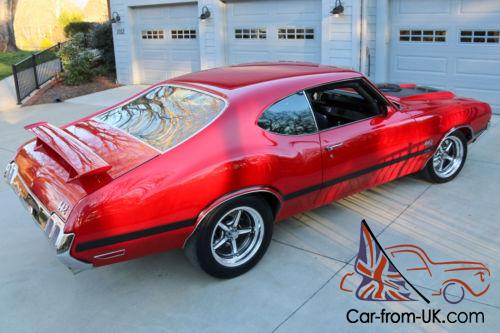

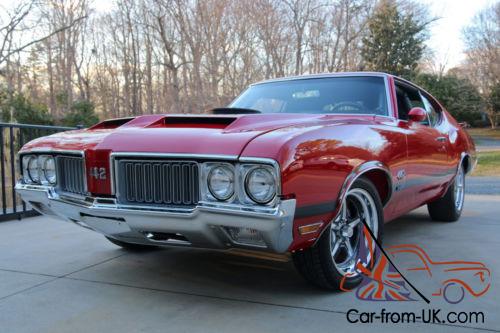

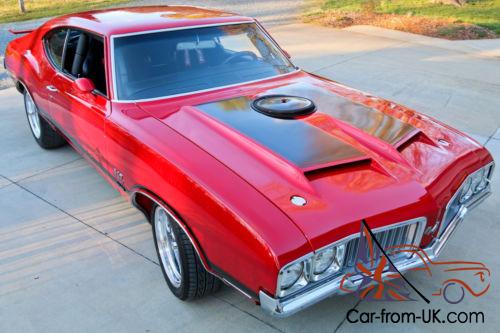

You are viewing a beautiful frame-off restored Matador red 1970 Oldsmobile 442 resto-mod.

This car has a 455 big block Oldsmobile with a fully forged rotating assembly.

Along with the monster engine is a 6-speed. Tremec t 56 magnum transmission.

The Oldsmobile 12-bolt was replaced with a stronger Chevrolet 12-bolt to reliably hold the power of the big block Oldsmobile. Dick Miller rear suspension along with QA 1 coil-overs up front.

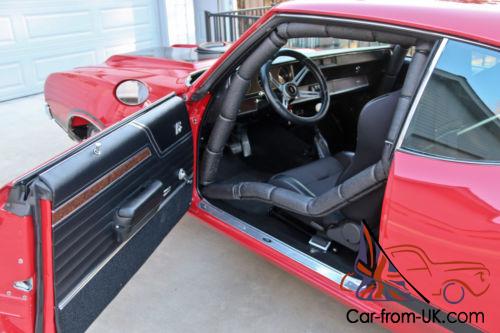

The interior is fully restored with upgraded seats and belts to ensure that you stay in place a 6 pt roll cage is in place to keep the car legal at the drag strip.

All engine parameters are monitored via a Dakota digital VHX gauge cluster.

DRIVETRAIN

ENGINE

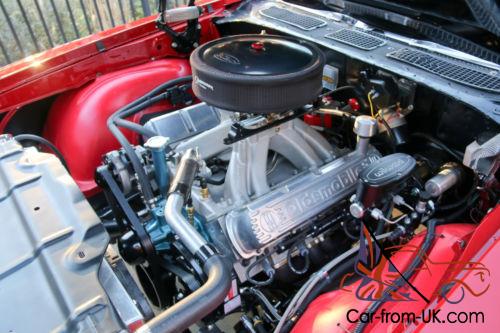

The engine is a one-off custom set-up. a 462 cubic inch big-block based on a 455 Oldsmobile. Making an estimated 600 hp.

SHORTBLOCK

455 Oldsmobile bored to 4. 160”
Oldsmobile 425 forged crankshaft offset ground . 300” to a 4. 25” stroke and 2. 2” connecting rod journals.

ATI harmonic balancer
Dick Miller Racing billet steel main caps
ARP main cap studs
Melling oil pump with shim to increase release valve pressure
Deep 7 qt oil pan
Main bearing to cam bearing oil restrictors
ARP main studs
Clevite H-Series Main and connecting rod bearings
Forged Manly BBC connecting rods
Custom made JE Pistons with a +11. 5 cc flat-top and 11. 76:1 compression.

VALVETRAIN

Jones Cam Designs SR lifters
Custom ground solid roller cam by Jones Cam Designs

Lift:

Intake . 681
Exhaust . 680

Duration . 050”: 254/255
LSA: 109

Custom length 5/8 th diameter pushrods
T&D shaft rocker system. with 1. 65 Roller Rockers
DC-4 Valve Springs

TOP-END

Edelbrock Performer Cylinder Heads ported by Marty Zimmerman
ARP head studs
Edelbrock Victor Intake manifold ported by Marty Zimmerman
Pro-systems 4150 Carburetor built and tuned to engine specifications

OTHER ITEMS

MSD Distributer with Comp Cams bronze gear
MSD 9 mm custom fit spark plug wires
L&M spark plug wire organizers
Cast aluminum Jet Hot coated OLDSMOBILE valve covers
March onyx black serpentine accessory drive
ARP stainless accessory hardware throughout

EXHAUST

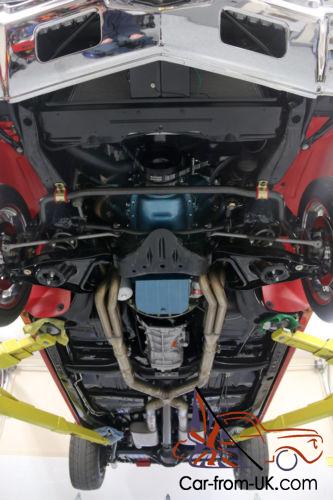

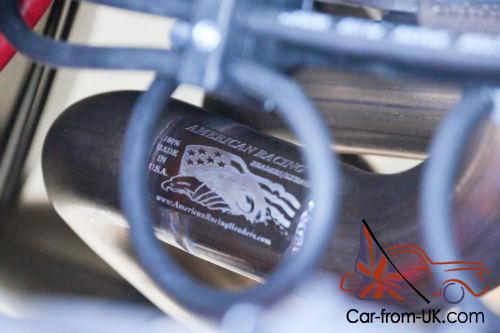

American Racing stainless steel 1-7/8”x 3” long-tube headers
Stainless header extensions with ball and socket flanges (no 3-bolt flange to leak)
3” stainless steel Pypes exhaust with x-pipe and Race-Pro mufflers

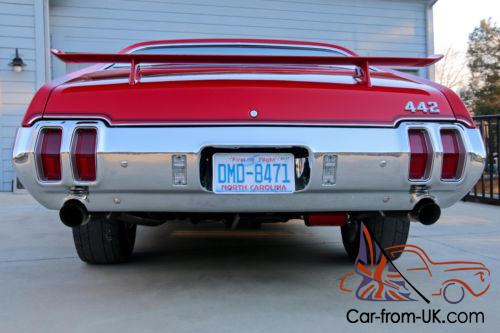

Polished s/s 442 style (trumpet) exhaust tips
Exhaust fully welded.

FUEL SYSTEM

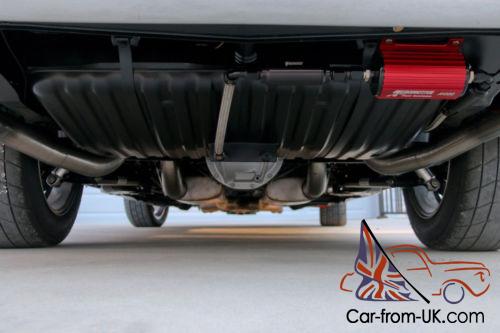

Stock fuel tank with sump installed
Aeromotive A 1000 Fuel Pump
100 Micron filter pre-pump
10 Micron filter post-pump
Aeromotive billet fuel pump controller w/ override
-8 AN Braided Stainless feed to fuel pressure regulator on firewall
-8 AN Braided Stainless return line to fuel tank from fuel pressure regulator
Aeromotive A 1000 4-Port regulator
-6 AN braided line to primary and secondary fuel bowls

COOLING SYSTEM

BTR billet aluminum thermostat housing with coolant bypass
180 degree thermostat
Aluminum Griffin radiator 28” x 19”
2596 cfm 16” Spal fan: x 2
Derale PWM electric fan controller w/ override
Aluminum water pump

TRANSMISSION

Billet steel flywheel
Standard BBC roller pilot bearing
American Powertrain T 56 Magnum Retrofit
Quick-Time steel blow proof bell-housing
Enlarged transmission tunnel to fit T 56 magnum
Tremec T 56 Magnum (TR 6060) transmission (6-speed manual)
American Powertrain White Lightning short-throw shifter
Lokar shifter boot
American Powertrain white cue-ball with 6-speed pattern
Hydraulic clutch setup w/ Wilwood master cylinder
Hydromax hydraulic release bearing slave
Mean-Street clutch by American Powertrain
Transmission filled with Mobile 1 synthetic ATF fluid
1350 size transmission yoke
Modified transmission cross member with energy suspension mount
Custom length driveshaft

REAR DIFFERENTIAL

12-Bolt Chevrolet differential housing from Chevelle
Custom 33-spline for Eaton Trutrac Hytuf Strange Engineering axles
Strange Engineering Street/Strip. tapered roller bearing c-clip eliminators
33-Spline Eaton Trutrac helical gear differential
1350 Mark Williams yoke
Strange ultimate-12 cast aluminum girdle support differential cover
4. 56 gear ratio

SUSPENSION. STEERING. and BRAKES

FRONT SUSPENSION- 100% Rebuilt

Stock A-arms with red polyurethane energy suspension A-arm bushings
New upper and lower ball joints
BMR 1. 25” sway bar with polyurethane end-link bushings
Polyurethane sway bar mounts
Single adjustable QA 1 coil-overs with 500 lbs/in springs

REAR SUSPENSION

Dick Miller Racing Hook & Launch pack w/ anti-hop brackets
Adjustable HAL (QA 1) rear shocks
All links from rear axle to frame mounted with polyurethane bushings
Moroso “trick” drag springs

STEERING- All brand new parts!

CPP power-steering box for 1970-1972 A-bodies
New Inner/Outter tie-rod ends
New Idler Arm
Fully rebuilt (rare BOP floorshift) tilt-steering column w/ new turn signal switch
Original Oldsmobile sport steering wheel

BRAKE SYSTEM

Wilwood 6-piston 140-10510 front brake kit
Wilwood 4-piston 140-5237-B rear brake kit (Independent rear parking brake calipers)
Wilwood 1-5/8” Black anodized master cylinder
Wilwood knob type rear proportioning valve
Custom bent stainless steel brake lines to all four corners
Braided stainless brake lines from hard-lines to both front calipers
CPP Hydra boost power brake booster

EXTERIOR BODY FINISH. WHEELS. AND TIRES

EXTERIOR

Front fenders replaced with NOS fenders
Rear quarter panels replaced with NOSR panels
All original trim (not Taiwan made) polished and straightened
Laser straight body finished with Matador Red and clear coat

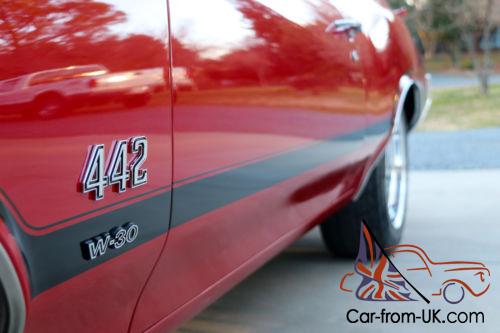

New 442 badging on trunk. fenders. and hood tongue
W-30 emblem added to a very worthy genuine 442
Year-One OAI fiberglass hood
Year-One vinyl W-30 and hood stripes
Underside of car gloss epoxy coated
Red W-30 inner fender wells
All original glass with the exception of a replacement windshield
All rubber replaced using Steele Rubber

WHEELS & TIRES

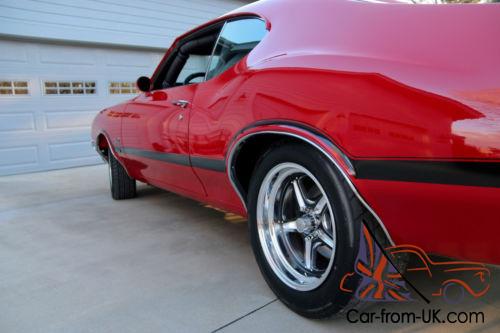

Billet Specialties Street Lite Black. on all four corners
Billet Specialties Street Lite lug nuts
17 x 9. 5 Rear
17 x 7 Front
275/50-17 M&H Racemaster drag radials on rear
215/35-17 Firestone Wide Oval tires on front

INTERIOR & ELECTRICAL

Custom carpet to fit modified transmission tunnel w/ heat shielding and sound deadener
Lokar shifter boot w/ polished s/s trim ring
NOS sill plates
New interior door panels
Rebuilt window regulators with new rollers
All new interior windlace
New package tray liner
New window felts (interior/exterior)
6 pt chromoly roll cage
New Procar front sport seats
Racequip 5 pt racing harness for driver and passenger
H&H wood dash trim with radio delete
Excellent condition rear seat
Excellent condition original headliner
Excellent condition dash assembly
Vintage Air auxiliary heater/defrost installed in stock heater box location
Custom rocker switches for fuel pump. fuel pump speed control bypass. and fan speed control bypass.

Trunk mounted battery -1 ga wire from battery to starter
Remote charging lugs underhood
Battery disconnect underhood
Powermaster 9510 XS Torque starter
Painless wiring muscle car 25 circuit harness installed in entire vehicle
Dakota Digital VHX series instrument cluster
