1977 Land Cruiser TOYFJ40

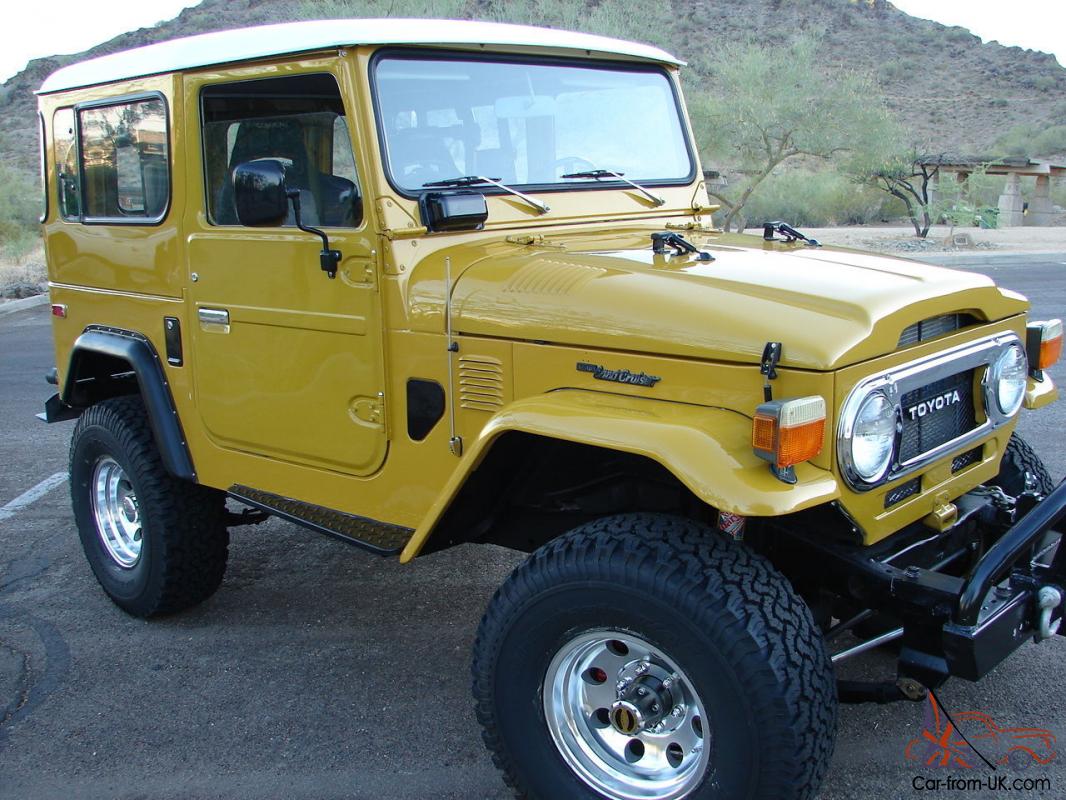

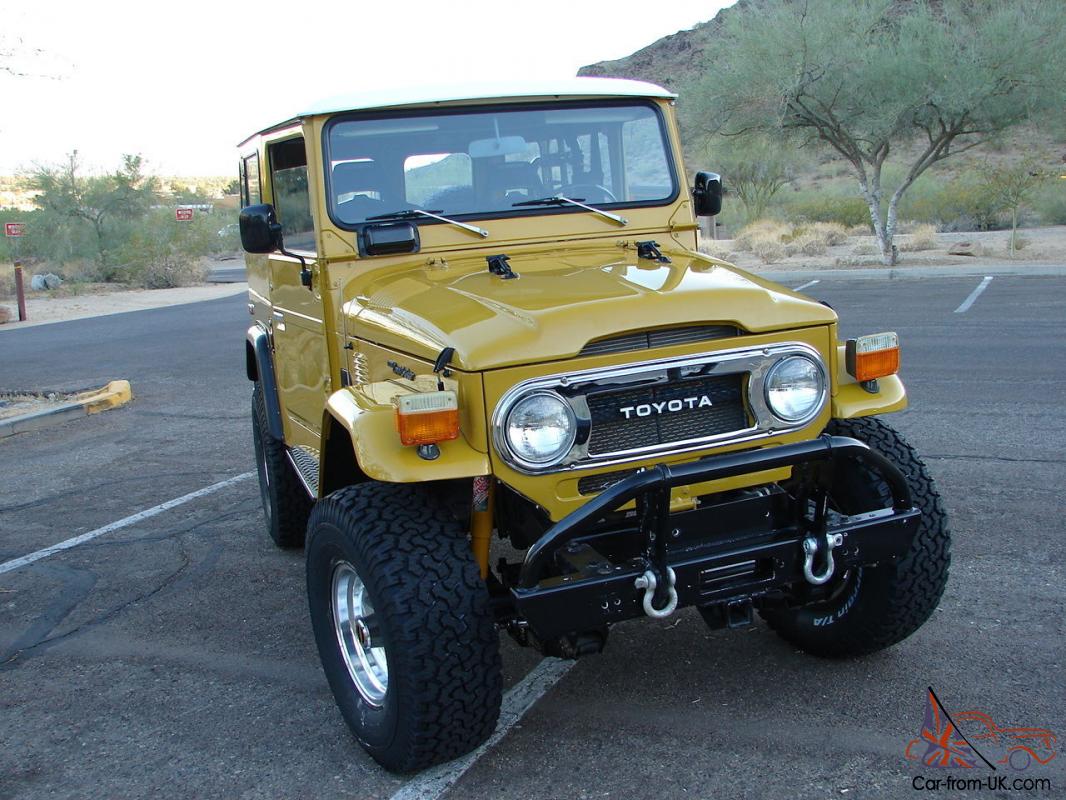

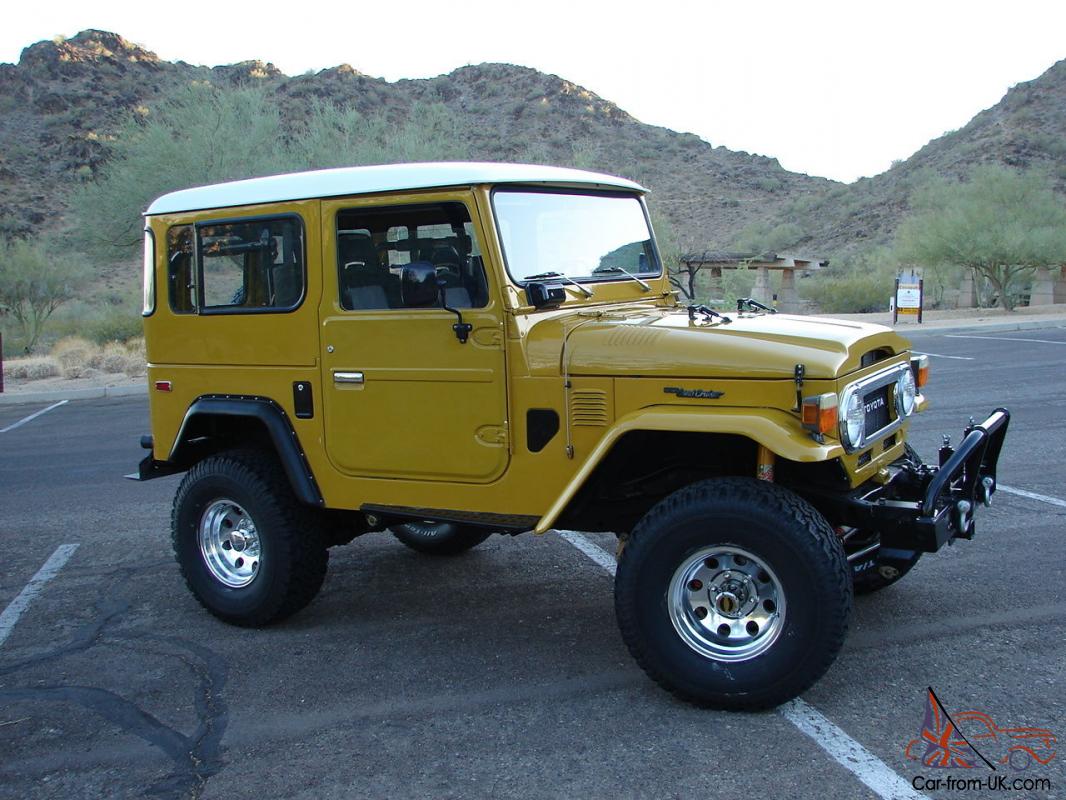

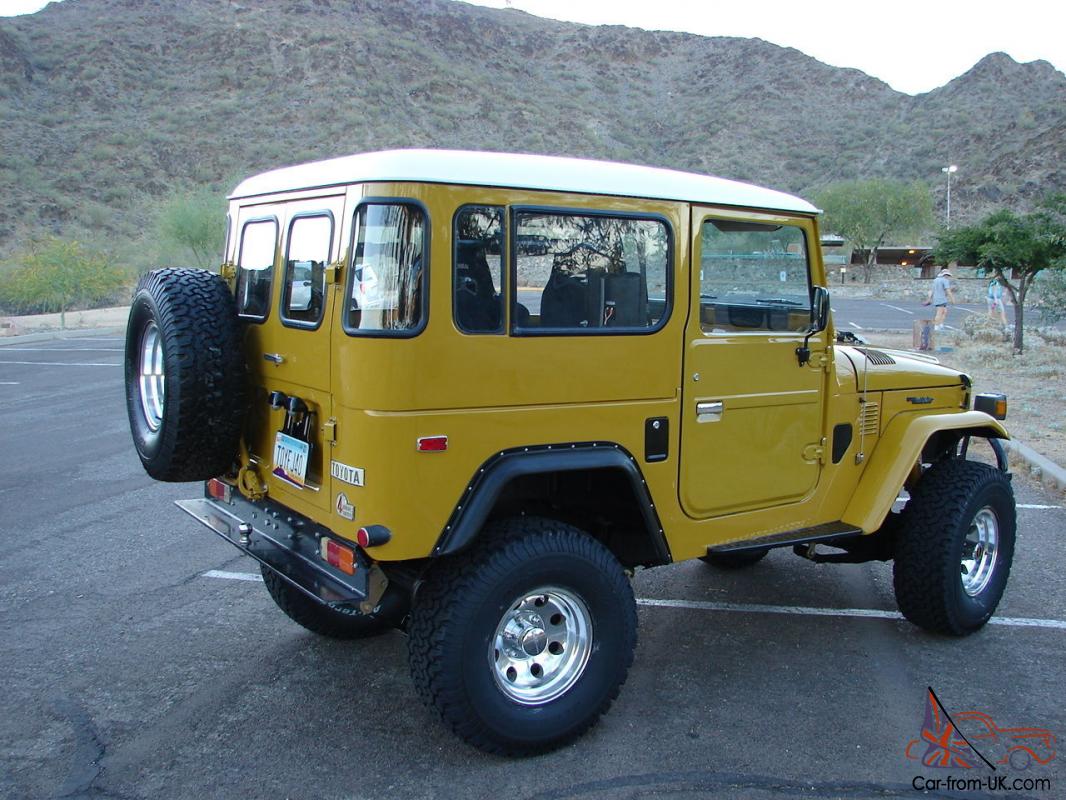

For Sale: TOYFJ 40 - 1977 Toyota FJ 40 350 Chevy V 8 conversion

Building this 4 wheeler was somewhat of a mid-life crisis project for me. as I built it in the image of the 1975 FJ 40 I owned during my college years. The personalized license plate reads TOYFJ 40. My intentions were to never sell it. Unfortunately. the number of grandkids I now have exceeds the seating capacity of the 40 and it has forced the issue. I have organized receipts for nearly everything I have spent on this vehicle and some documentation from the previous owner. The guy I bought it from said it would never win any shows. Honestly. this is the cleanest. most tastefully customized Toyota Land Cruiser FJ 40 you will find anywhere the other guys who say that about theirs are lying. Just kidding. There are other nice custom 40 s out there at this level. but there is no doubt this one is a 1 per center. If the nicest FJ 40 around is what you are looking for. then this is it.

Body

* Collector-level body work and paint

* Mustard acrylic single-stage paint

* Hand buffed and Turtle waxed

* Hard top with ambulance doors. new top gaskets

* The fiberglass top looks like glass

* New windshield

* New rubber for all windows

* Powder-coated many smaller parts black or gray

* New front fenders and rear quarter panels. new running boards

* New rear-sill

* Bedliner applied to fender wells and interior floorboard

* New turn signals. mirrors and marker lights

* 4 Plus Heavy duty front winch-ready bumper

* Custom super heavy duty rear bumper

* New body mounts

Powertrain

* New 350 crate Chevrolet engine

* New exhaust. which sits high and out-of-sight (2 into 1)

* Rochester Quadrajet carburetor

* Edelbrock aluminum intake manifold

* HEI Ignition

* Flow Kooler Waterpump

* 4-Speed Aussie H 41 transmission from Man-a-fre with a 4. 95 first gear. provides a lower first gear than original H 42 four-speed transmission. which is 3. 55.

* New Ranger 2-speed overdrive – doubles the number of gears

* Rebuilt transfer case from 4 Plus

* New Ron Davis aluminum stock car radiator with dual SPAL electric fans

* New Warn locking hubs

Interior

* New Auto Meter gauges. custom dash cluster

Speedometer

Tachometer

Fuel

H 2 O Temp

Voltage

Amperage

Oil pressure

* New cloth Corbeau seats

* Slide-n-lock tie-downs installed

* Dash pads have been removed

* Factory radio location was covered

* Rollbar – powder-coated black

* Locking Tuffy Center Console

* Pioneer AM/FM CD MP 3 stereo with USB and Bluetooth

* Polk Audio – Atrium speakers

* Grab bar

* Overhead console included in purchase

Suspension and Steering

* Safari suspension lift (2. 5” Front 4” Rear)

* Shackle reversal

* U-bolt-flip

* Heckethorn gas shocks

* Rear springs are flipped for a slightly longer wheelbase

* New Saginaw power steering

Brakes and Axles

* Monte Carlo disk brake conversion added in the rear

* New rotors and calipers in the front

* Brake proportioning valve installed to balance the braking

* Front knuckle re-build. new bearings. wipers and seals

* New emergency brake pads installed

* Spare rear axle and spare birfield included with purchase

Tires and Wheels

* Four New BFG 33 x 12. 50 x 15 ATs. Spare is the same. never used. but older

* 15” Aluminum MB Racing wheels

Battery and Alternator

* Die-Hard AGM battery

* 4 Plus battery holder

* 150 amp alternator

The Bad

This Toyota has collectors insurance. which means it no longer needs to be annually inspected for smog in Phoenix. Arizona. where it is located. Hence. the smog pump and air-rails. necessary to pass the visual inspection. are not currently installed. but included in the sale. * Slight parasitic electrical drain. * Headliner could stand to be re-done* Cigarette lighter not connected* Several small paint chips* Treated windshield
