1957 Chevrolet 3600 Dually Short Bed Dump Truck

Complete Restoration History

The frame

res toration took about 7 years.

I stripped all those years of grime and road off the old frame and body. straightened her out. painted her up and set about to repair and restore all the mechanicals. I bought and installed new front and rear leaf springs and

shackle

kits from Benz Spring in

Oregon . Installed new king pins . brakes

and bearings . Installed a

hydrovac

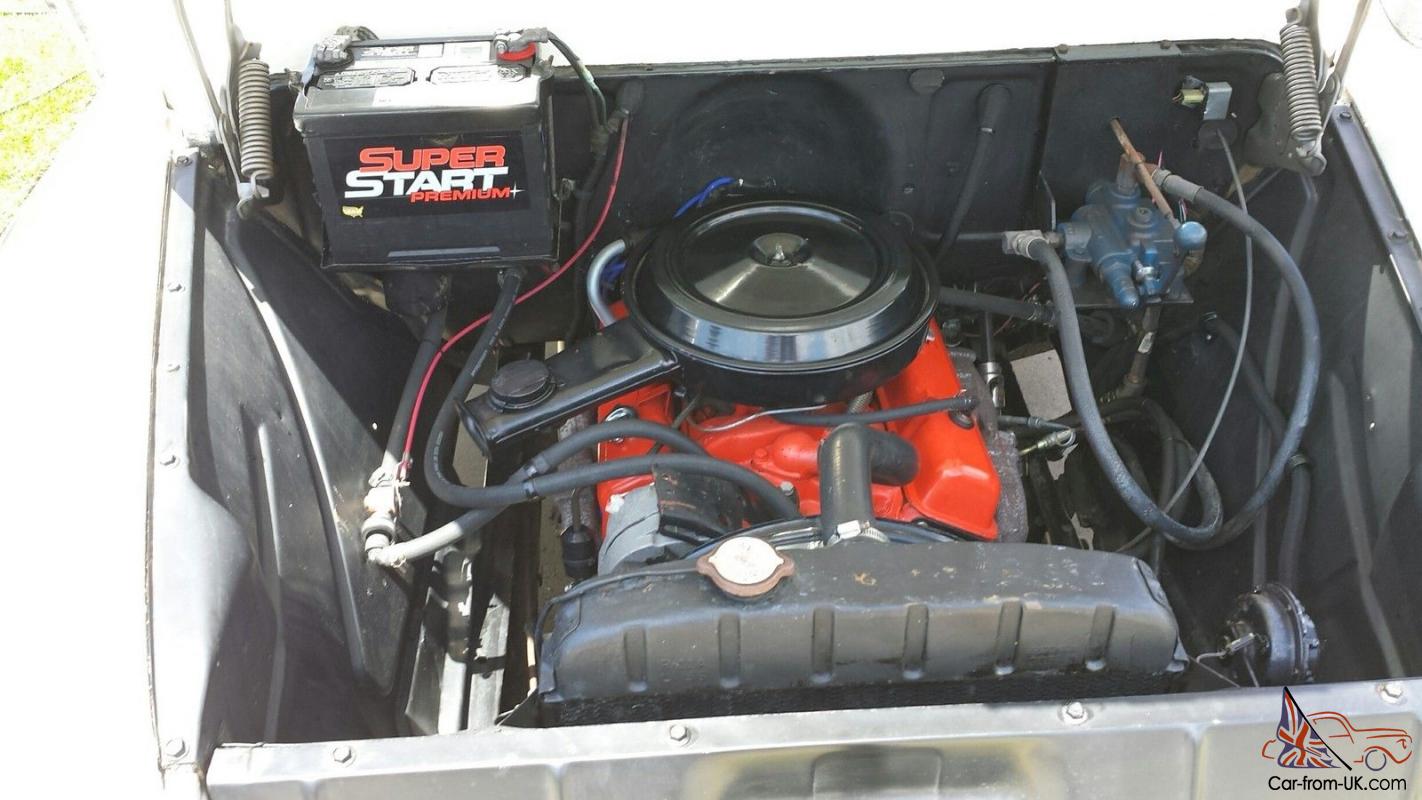

unit from a big GMC dump truck and gave it power brakes. I rebuilt the mid 70's 350 cubic inch motor with bigger valves and a mild cam and rebuilt that

quadrajet

carburetor to a perfect working order.

Installed a new clutch. 11 inch flywheel and high torque starter.

Installed an electronic iginition . new alternator and optima battery for trouble free operation. I rebuilt and sealed the PTO and the pump with new bearings and seals. I removed the drum parking brake behind the

SM 420

trans

in order to install a

Gearvendo rs

overdrive unit and then installed a line-lock so there is some sort of E brake.

It really needed taller gears for freeway driving so I

replaced the 4:57 rear end gears with a

top quality 4:11 from a mid 60's truck and installed taller. later model wheels in the rear that took the 17. 5 inch wheels to 19. 5.

This required having the hub s

drilled on a CNC machine to accept larger and longer lugs.

I kept the 17. 5 inch wheels in front and had all

6 wheels

powder coated. Installed a power steering kit from ABS in Orange. California and added an

auxiliary

fuel cell just inside the frame behind the cab. I kept the seat tank and installed a fuel selector switch and now have a very long range between fill ups. It cruises at freeway speeds at about 2200 rpms and with all that

Dynamat

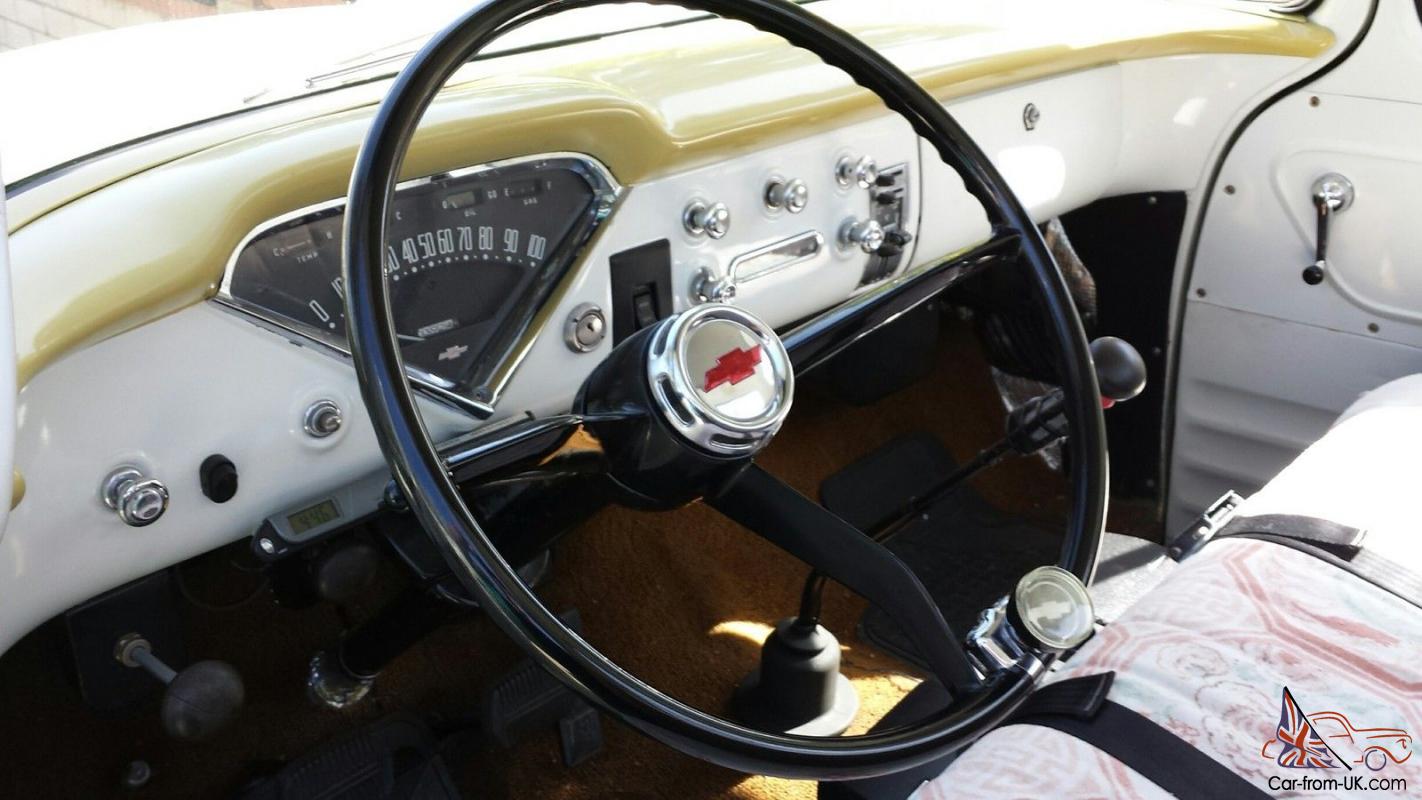

sound attenuating material I installed. it's pretty quiet as well. Someone gave me a bench seat from a mid 90's truck that I had recovered .

I t's way more comfortable than the old stock seat. This old truck looks great and shows well at car shows. People go nuts over it. But I wanted it to earn its keep so the last thing I did was install huge air helper springs

( Air Lift Dominator Series with

5. 00 lbs of leveling capacity!) and a wireless compressor.

This is a completely custom fabrication that I made with some technical assistance from Air Lift.

Now this thing can really carry some weight.

The huge hydraulic ram dumps the bed without even straining.

In October. 2009 it won the Participant's Choice Award: best in class at the 5 th

annual OCVCCA all Chevy show.
