Porsche : 930 Turbo

For Sale: Porsche 930 Track Car

Inspired by the iconic 934 of the 1970 s. this very special car was built and maintained over the years by Jay Lloyds -

a factory trained Porsche motorsport mechanic and renowned turbo engine builder. Jay specializes in high-end air-cooled

Porsches including vintage IMSA and FIA Group-C cars.

No cost was spared building and maintaining this car. This track prepared 930 was designed specifically for

PCA instructor duties. It is street legal. If you have always had the urge

to build the ultimate track 930 you appreciate the extensive modifications required to meet that goal and want to avoid the hassle of

trailering your car. this car is for you!

Important items relating to mileage have been expertly maintained or replaced. This car is very fresh at the moment.

The chassis is in excellent condition. It has never seen a winter and has always been kept in a heated garage.

It has been tracked and has benefited from continuous tech inspections. This car has never been crashed.

Engine was just out for a transmission and LSD rebuild. Also received a new clutch. Valves adjusted in the fall. Not much track time the past 4 years. Local inspection available. Or you can talk to the builder directly.

If you have any questions. please feel free to ask before bidding. I have lots of build photos available.

1981 Porsche 930

Canadian car with 218. 00 km

Fully restored in 2001. substantial refreshes recently done

Built and maintained by Jay Lloyds

"Mystic Black" with Black interior

Fresh engine. gearbox. suspension. exhaust

Tracked with meticulous and continuous maintenance

Never crashed

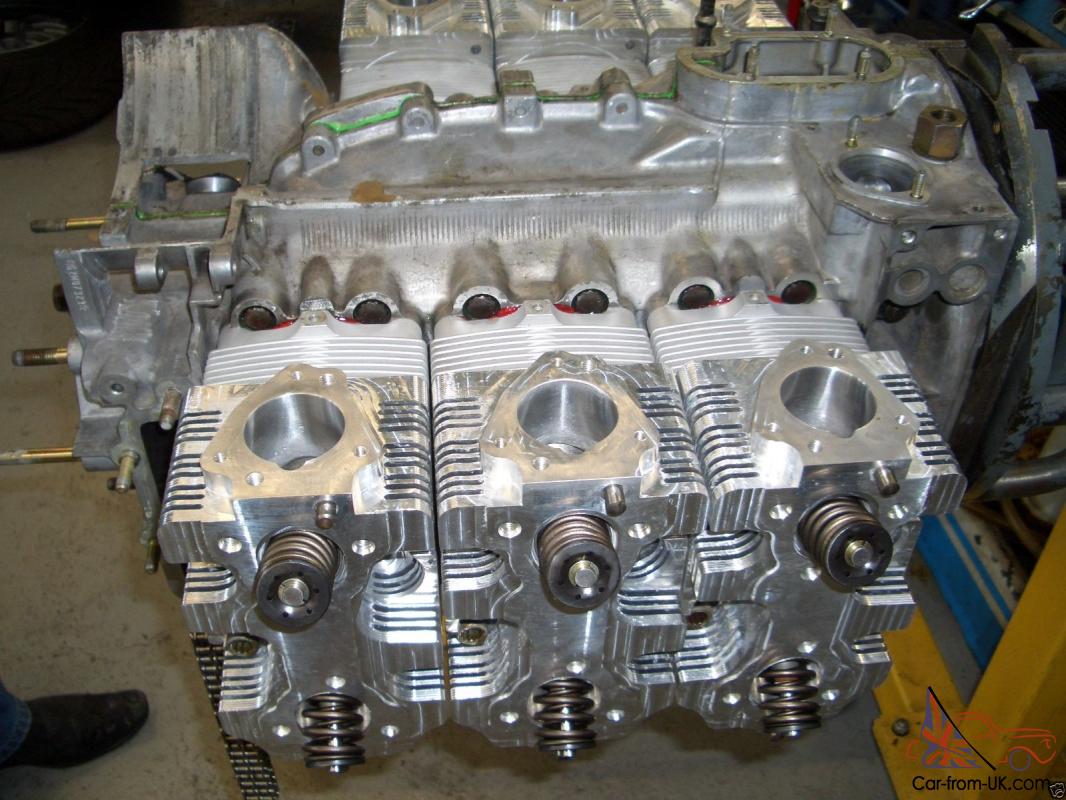

Engine — Turbo 3. 8 L EFI

3. 8 L 964 based (recently rebuilt)

LN Engineering 102 mm billet cylinders. 8. 5:1 forged turbo pistons

CMW D-Port twin plug billet heads

Custom 964 crank - knife-edged. stress relieved. shot peened

Custom 964 connecting rods - stress relieved. shot peened. ARP hardware

SC grind cam profile

Carrera 3. 2 intake manifold

Tec 3 R EFI (Wintec 4 update). staged fuel injection. wideband AFR and EGT

Custom full width intercooler

Large bore throttle body

Clewett serpentine belt conversion

B&B custom large primary headers w/heat (new 2013)

B&B big front oil cooler w/ dash-16 braided lines

Smart Racing high capacity baffled oil tank

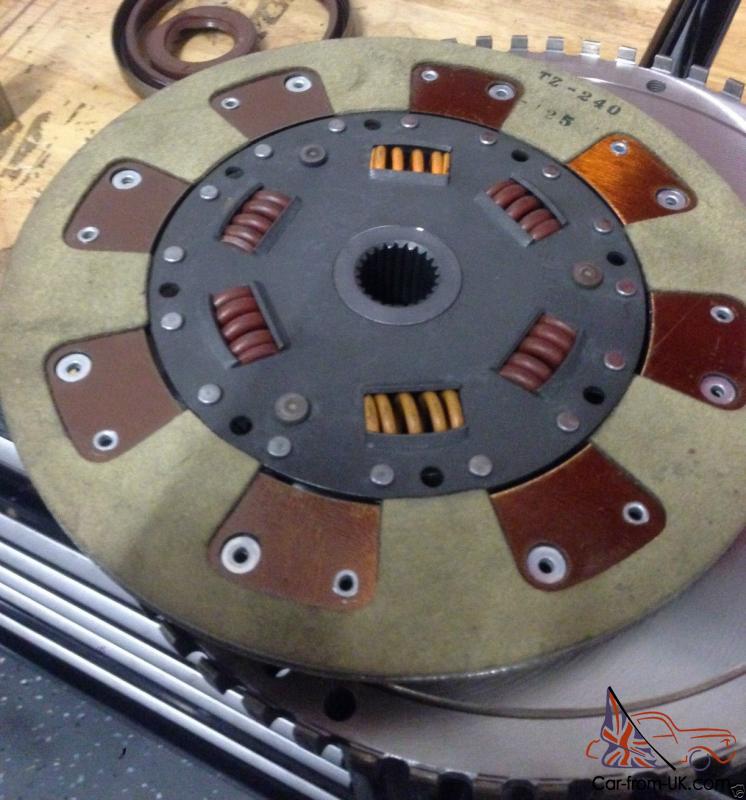

Lightweight flywheel. 935 pressure plate. New Kevlar clutch

4-speed (just rebuilt) w/ fresh 80% LSD (just rebuilt). new pressure plate. Wevo semi-solid mounts

K 29 turbocharger (2012)

Tial 46 mm wastegate

Cockpit adjustable boost

Custom high flow muffler

Suspension

Elephant Racing track suspension (new 2014)

24/34 mm torsion bars. bump steer geometry corrected

All monoballs. inners weather sealed. poly-bronze bushings

Indexed camber plates. Camber Max. etc.

935 triangulated X-brace

Smart Racing Custom valved Bilstein dampers

Smart Racing 27/31 mm racing sway bars

Wevo HD swaybar mounts

Currently aligned to -3/-2. 5. easily adjusted

Chassis

Stock 930 bodywork.

H 4 headlight conversion

934 front splitter — custom to fit standard Turbo fenders

BBS Motorsport wheels 18 x 9/11" (new centers 2013)

Michelin Pilot Sport Cup 235/40-18. 295/30-18 tires (996 GT 3 size)

Brembo GTP big brakes w/ 993 Turbo rotors. braided lines. ducted. etc.

Pagid Yellow/Black pads (RS 29 F/RS 14 R)

Gussetted and reinforced rear subframe A/C delete

Interior

Recaro SPG racing seats DAS-sport bolt-in roll bar

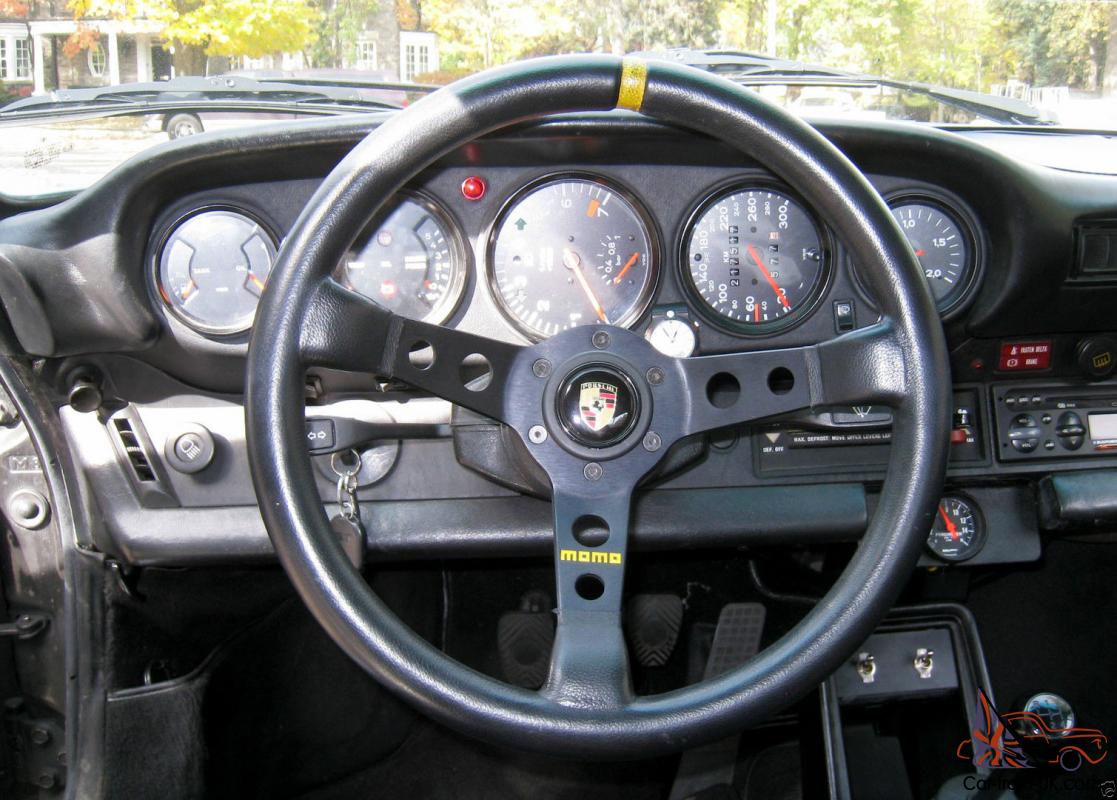

Momo Mod-7 race wheel

Boost gauge replacing clock

Blaupunkt Stereo. CD changer. Infinity speakers (LCD not perfect)
