1970 Ford Mustang Sportsroof (Fastback) Unfinished Pro Touring Project

This auction is for my 1970 mustang 302 sportsroof (fastback) unfinished project (Pro Touring Style).

I bought it off ebay USA late 2006 & with the shipping & customs it was about £6k. I have the original american title & the customs paid but not rejestered with DVLA.

I'm selling the car due to a change in direction in life (emigration) & don't want the hassel of shipping & import duties to another country.

With the purchase of the car & the list of parts bought listed further below I have at least £30k invested in this project so there is a reserve on it.

If you click on this link you'll see the work on the car from the start (page4 backwards) with the pics above showing how it is now . http://www. flickr. com/photos/302mustang/

Work done .

Striped to a shell then shot blasted with grit on underside. engine bay & inside floors then with garnet on the roof & body . then sprayed in ascid etch primmer.

X2 new floor pans. r/h sill. r/h rear quarter panel. the 2 ends of the rear tail light panel (welded from the inside). seat platforms welded in & sealed. The frame for the new rear suspension. subframe connectors (notched to miss floor pan) welded in.

While still on the rottissere the whole underside had 2k primmer (5ltrs) then matt black (2ltrs) then stonechip (4. 5ltrs) & finaly underseal (4. 5ltrs).

Sent to a body shop to be filled & primmed on the body & painted black inside & the engine bay . 11months & £1500. 00 later I got it back (a few bits that in the cold light of day I'd redo).

Bought parts while the car was in the body shop.

Fitted the 10 point rollcage 1 5/8ths tube (after having a new main hoop made 1 ½'' tube that bent in at the bootom as the original touched the b pillar so would be hard to weld all the way round & not to good at spreading the load onto the base plates) this has the xtra sill tubes welded into the 4 main base plates & an xtra 1 ½ '' tube welded in as a rear brace between the rear wheel arches. The dash bar is notched ready but have not fitted it yet. lower dash smothed out & bolted in. I have a pair of swing-out door bar kits but have not fitted them.

I got the Bimarco race seats new off ebay for £500 the pair & then with the car back found that they would't fit on the original seat platforms (touching the roof) so had to cut them out & make some new base plates & seat brackets out of 5mm thick plate. as you'll see in the pic's 1 seat has damage to the left ear & a modifiction to the bottom left corner to miss the sill tubes. the other seat is still new in the box.

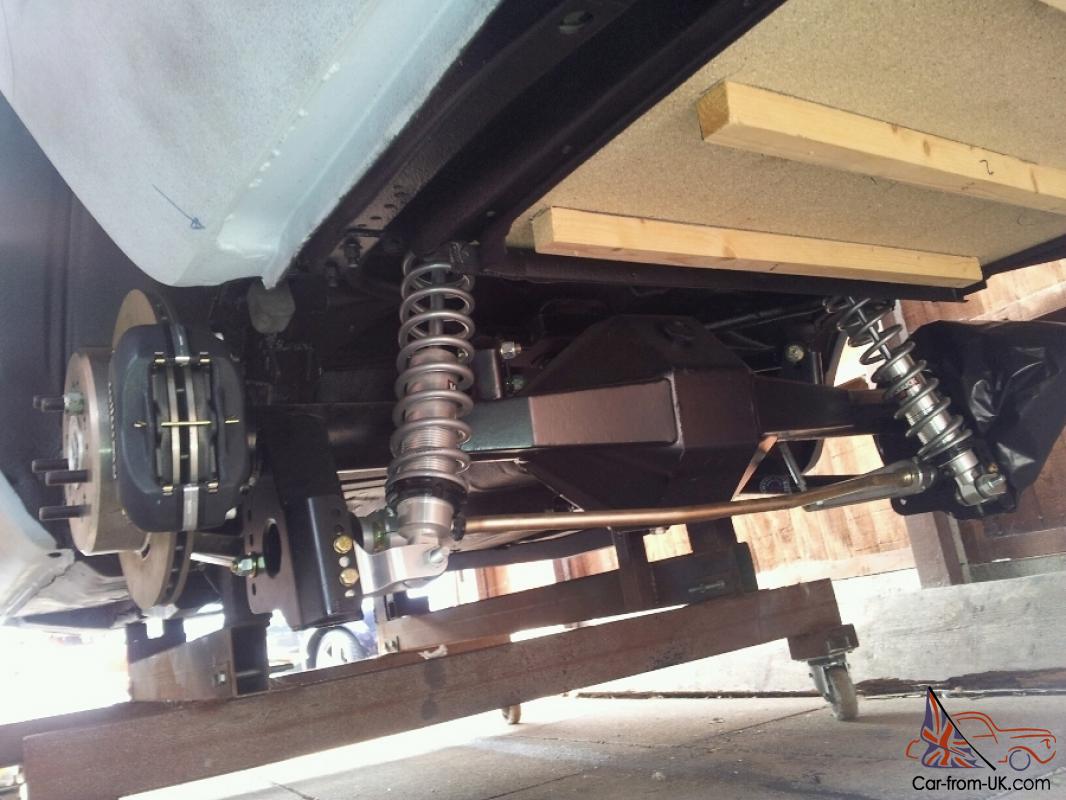

I had the Fab9 rear axle (powdercoated black) . Strange Pro Iron diff (with Detroit Locker 3. 70:1 gears). Strange 35 spline shafts & Wilwood 4 pot disc brakes all put together buy Frank Griffin (Outlaw Anglia Drag Racer & car builder) then fitted to car . will need adjusting/setting up to be mm perfect.

I have a new Dodge Viper 6 speed T56 manual gearbox (has the Viper logo embosed on it) that goes with the car which to buy in the states cost $3000 before shipping.

I sold all the metal body panels & original 4 speed when I striped the car. I have all fiberglass panels except for the bonnet (as I didn't know where the turbo's or what kind of inlet manifold would be used were going to sit in the engine bay until I'd had a race motor built) & a rear valence as there are 2 kinds (a) with exhaust cutouts & (b) with no cutouts for the exhaust & as I hadn't got as far as working out the route of the exhaust I was going to leave it till the end.

I still have the original 302 2v V8 engine. rear windscreen. steering wheel & colum. metal front & rear bumpers. dash insert with dials.

Parts you'll need to finish -

*Engine rebuild or have a race engine built (that was my plan) + ancilleries

*Fuel tank. swirl pot. pumps & lines

*Propshaft + yoke (still have original)

*Wheels & tyres

*Rad & hoses

*Battery (was going to mount in boot)

*Exhaust system (have manifols for turbos)

*Gear leaver

*Parking brake (was going to fit a handbrake & custom made center console)

*Heater (was going to fit something smaller off a modern car)

*Carpet

*Bolts & fixings

*Brake lines

*Maybe some interior trim

*Paint

*Clutch + cable/hydraulic

*Can't remember if I still have the original headlights as I was going to fit BMW halo's

*Front indicators

Winning bidder will have to contact me as to when to pick up the car & parts (bodyshell is on a 4 braked caster wheeled cradel which is 5ft wide & botled to the subframe connectors with 8 bolts) as :-

1. I work shifts (night & days) 4 on 4 off

2. The parts are in a storage unit that I can only get to in week days so you'll have to let me get it all out the day before you collect

3. Cash on collection please.

Here's the list of parts bought for this project :-

Total Control Products

18/04/08

Complete Front Coilover Conversion Kit (450lbs springs) TCP FCOC-FD $2485. 00

Front Forged Spindles TCP SPND-01 $ 359. 00

Spindle Hardware Kit TCP SPND-02 $ 25. 00

Upper Arm Dropped Pivot Shaft 7905-032 $ 60. 00

Front Anti-Roll Bar 1''1/8 TCP ARFMX $ 289. 00

Subframe & Connector Supports Complete Package TCP PKG-SFC-01 $ 498. 00

G-Link Pivot Ball Canted-4-Bar Suspension Conversion 5804-M20 $2049. 00

FAB9 (4130) G-BAR Housing Mount 84M20-711 $1439. 00
+ option
Folded Back Brace (4130) Factory Installed $ 250. 00

Rear Roll Bar Spline End + Weld In Brackets 5812-M10 $ 479. 00
-----------
Total $7933. 00

Moving Parts Shipping for above order to UK = £1366. 45.

--------------------------------------------------------------------------------------------------------

Chris Alstons Chassisworks

Strange Engineering Pro Iron centre section with Detroit Locker fitted with a 3. 70:1 gear & optional

extra of a chrome molly yoke

$1575. 00

Shipping via UPS $ 578. 00

-------------------------------------------------------------------------------------------------------------

All 4 orders shipped by Moving Parts.

Summit Racing 16/05/07

WIL-260-8555P Wilwood polished master cylinder $239. 00

PRF-20122 Painless wiring harness $759. 00

Handling $10. 95

Total $1008. 90

Mustang Depot 11/05/07

FS-M219 1969-70 Fastback Shelby style spoiler trunk

with end caps $464. 95

Box Charge $ 15. 00

Shipping & Handling $44. 18

Documentation Charge $ 25. 00

Total $549. 13

Speed Direct 04/05/07

Steeroids 84537-250 1970 Chrome column power steering

rack & pinion set $1599. 00

Total inc Shipping $1661. 84

Unlimited Products (fiberglass) 12/05/07

MU-102 L&R Front Fenders Pair $378. 00

MU-103 Panel behind front bumper $ 45. 00

MU-104 Front valance $129. 00

MU-910 Front bumper $119. 95

MU-911 Rear bumper $119. 95

SP-104 Front Spoiler $ 49. 00

Box Charge $150. 00

Shipping $384. 63

Total $1375. 53

Moving Parts invoice for int shipping = £ 1302. 40.

---------------------------------------------------------------------------------------------------------------

Customville American 21/11/07

XS-Mustang Twin Turbo Kit

intercooler. pipes. blow off valves. chrome exhaust manifolds. T3-T4 turbo's

£1198. 38

----------------------------------------------------------------------------------------------------------------

Stateside Auto Parts

10/11/07 (ordered from Summit Racing)

WIL-140-4304BD Wilwood Dynalite Pro Series Front Disc

Brake Kit . Disc size 11. 75'' (298mm) slotted & vented

Total £816. 63

10/11/07 (ordered from CJ Pony)

FLP1-V Full length floor pans pair £116. 95

TLP4 Tail light panel £ 95. 95

UPS £ 45. 00

Total £307. 73

24/03/09 (ordered from CJ Pony)

QPS3-V Right hand side rear quarter panel £107. 94

M154R Rocker Panel (sill) R/H Side £ 41. 94

Total inc Vat £172. 36

28/10/10 (ordered from Summit Racing)

QTI-RM-8031 Quick time bell housing . for SBF – T56 manual 6speed

Total inc Vat £620. 40

-------------------------------------------------------------------------------------------------------------

Chris Alstons Chassisworks

This order I paid for direct from the company & had it shipped over with the rest of the orders below by Classic US Autoparts.

10 Point Roll Cage SKU 7003 $359. 00

Dashboard Tube SKU 7012 $ 25. 00

Roll Cage Rocker (Sill) Support SKU 7024 $ 30. 00

Roll Bar Gussets SKU 7014 $ 25. 00

Ford 289-351 Motor Plate (front) SKU 6033 $110. 00

Strange Engineering 35 spline shafts. bearings & retainers $375. 00

Freight Charge $ 45. 00

Total $969. 00

Classic US Autoparts 05/0810

The orders listed below from Summit Racing/National Parts Depot/VFN Fiberglass & CJ Pony were ordered & shipped by Classic US Autoparts.

Total cost of all the orders (inc vat) £6379. 89

Total cost of Shipping (inc vat ) £1213. 40



NPD

HF-90-A Black FB Headliner

51915-1B Headliner Insulation FB 2pc Roof Panel

52018-1 Trim Panel Sporsroof ¼ Pillar (Black)

513A40-3A FB Pair. Sail Panel (B Pillar) Insulation

Black Sun Visors Pair

04110-2A Bracket Sun Visor X2 LH & RH

04115-K Rubber End Cap Sun Visor Arm Pair

04132-1E Bracket Rod Centre

04145-7K Sun Visor Mounting Kit FB 6 Screws

17700-5 Rear View Mirror

17698-2 Glue On Bracket Rear View Mirror

U-L1156L30 LED Bulbs X2

43200-2 Trunk Latch

43200-3K Trunk Latch Mounting Kit

43252-3A Striker Plate Trunk

43283-2 Trunk Lock Extention

43505-3 Cylinder & Keys . Trunk

22050-3 Matched Lock Set . Ignition & 2 Doors

21812-4A RH Door Latch

21813-4A LH Door Latch

21813-1K Mounting Kit Door Latch X2

218A13-2A Reinforcement Door Latch Plate Pair

21852-3A RH Rod Set Door Lock

21853-3A LH Rod Set Door Lock

21952-2A Retainer Door Latch Rod X2

22008-2 Striker Plate X2

22008-2K Mounting Kit. Striker

22023-2 Retainer Door Lock Cylinder X2

03100-5A Windshield Glass Tinted

03148-3AK Windshield Moulding 4pc Set FB

Front & Rear Windshield Rubbers

42400-3B Rear Windshield Moulding Set

42309-1 Retainer . Lower Back Moulding X7

30222-3A Frame ¼ Window Front Pair

30238-1A Anchor Bolt . ¼ Window X2

30252-1A Handle Assy . Rear ¼ Window X2

13520-3 Seal . Tail Light To Body X2

13450-6A 70 Tail Light Lens X2

17696-6C LH Racing Door Mirror

17696-6B RH Racing Door Mirror

16763-1AK Hood Bumpers

16758-3K On Fender Wedge Shape . Hood Bumper

3513-3A Grommet . Steering Column

17618-4 Reservoir . Windshield Washer

£1993. 91 + £348. 93 Vat

SUMMIT RACING

ATM-5701 Autometer Phantom 2 1/16 Boost/Vac 20psi X2

ATM-5714 Phantom 2 1/16 Fuel Level 0-90ohms

ATM-5727 Phantom 2 1/16 Oil Pressure

ATM-5737 Phantom 2 1/16 Water Temp 100-250F

ATM-5859 Phantom 5'' 0-160 MPH Speedo

ATM-5898 Phantom 5'' 0-10. 00 Tachometer

CEE-3183 Swing Out Door Bar Kit X2

CEE-4035 Motor Plate . Mid Mount . Steel . SBF

MOR-4035 Moroso Quick Fastner Wrench

SUM-G Quick Release Fastners

SUM-G1626 Quick Release Weld Plates

VDO-226008 Fuel Tank Sender 0-90ohms

WIL-140-7140 Wilwood Dynalite Pro Series Rear Disc Parking Brake Kit

PHP-9-02137-43FB Percy's Speedglass (Lexan) Mustang 69/70 Window Kit

£1753. 66 + £306. 89 Vat

VFN FIBERGLASS

1970 Mustang Headlight Buckets . Pair (2lbs weight each)

1970 Mustang Doors . Pair (10lbs weight each)

1970 Mustang Dash (top) 4lbs weight)

£1186. 47 + £207. 63 Vat

C. J. PONY

TLLED8 LED Non Sequential Tail Lights Inserts X2

EDH15 Scott Drake Exterior Door Handles . Pair Complete Kit

BLK3 Back Up Light Kit . Pair Complete Kit

BMP3 Boomerang Rear ¼ Window Moulding . Pair

WSKIT8 Weather Strip Kit Inc :- Hood To Cowl. Rear Window. Roof Rail (Pair). Front Of Door (Pair). ¼ Window. ¼ Post Seals. Pair Or Door Weather Strips. 4pc Belt Line & Trunk Weather Strip.

£495. 65 + £86. 74 Vat
